GN 31 Leveling Feet Stainless Steel, with Rubber Pad

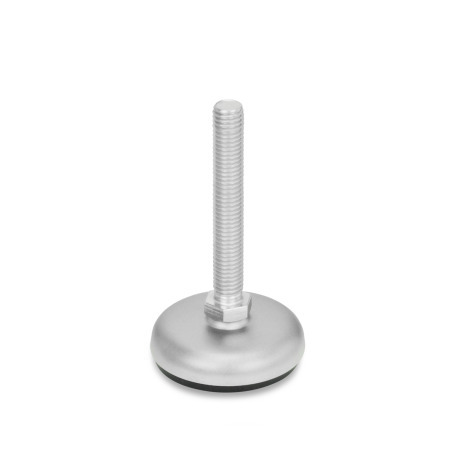

Leveling Feet GN 31: Stainless Steel, with Rubber Pad

Type (Base): B1 - Matte shot-blasted, rubber inlaid, black
Version (Screw): S - Without nut, external hex at the bottom

Product Family Stainless Steel Quality Class 1

The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.

For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:

Stainless Steel Quality Class 1

Stainless Steel Quality Class 2

Stainless Steel Quality Class 4

Show detailed information on the stainless steel quality classes

Show all stainless steel products

Load rating of Leveling feet GN 31 / GN 33 Plastic Characteristics Stainless Steel Characteristics

Product description

Leveling feet GN 31 with vulcanised rubber (Types B3, B4, C3 and C4) and screw version W feature fewer dead spots owing to their construction method and are also easier to clean.

Leveling feet GN 31 will be delivered mounted and are not removable.

Specification

Base plate
Stainless steel AISI 304

Threaded stem
Stainless steel AISI 303

Hex nut ISO 4032
Stainless steel AISI 304

Rubber pad, inlaid
- Black: NBR (Perbunan^®)
  80±5 Shore A
- White: TPE (Santoprene^®)
  80±5 Shore A

Rubber pad, vulcanised
80±5 Shore A
- Black: NBR (Perbunan^®)
- White: NBR (Perbunan^®)

RoHS

GN 31 Leveling Feet, Stainless Steel, with Rubber Pad sketch

Hide technical drawing

Article options / Table

Type (Base)

B1	Matte shot-blasted, rubber inlaid, black
B2	Matte shot-blasted, rubber inlaid, white
B3*	Matte shot-blasted, rubber vulcanized, black
B4*	Matte shot-blasted, rubber vulcanized, white
C3*	Polished, rubber vulcanized, black
C4*	Polished, rubber vulcanized, white

Version (Screw)

S	Without nut, external hex at the bottom
SK	With nut, external hex at the bottom
T	Without nut, wrench flat at the bottom
TK	With nut, wrench flat at the bottom
U	Without nut, hex socket at the top and wrench flat at the bottom
UK	With nut, hex socket at the top and wrench flat at the bottom
V	Without nut, external hex at the top and wrench flat at the bottom
VK	With nut, external hex at the top and wrench flat at the bottom
W	With adjustable sleeve, covered thread and wrench flat at the bottom
X	External hex with internal thread

Show / Hide columns

d₁	d₂	l₁ Version S / SK				Version T / TK and U / UK						l₂ Version V / VK				l₃ +4 Version W				l₇ +4 Version X	h₁	h2	s

50	M 8	40	50	63	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	37	14,5	3,5	3
50	M 10	50	60	80	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	40	14,5	3,5	3
50	M 12	60	80	100	125	-	-	-	-	-	-	-	-	-	-	-	-	-	-	43	14,5	3,5	3
50	M 16	-	-	-	-	75	100	125	150	200	250	-	-	-	-	-	-	-	-	49	14,5	3,5	3
60	M 8	40	50	63	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	38	16	4	3
60	M 10	50	60	80	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	41	16	4	3
60	M 12	60	80	100	125	-	-	-	-	-	-	-	-	-	-	-	-	-	-	45	16	4	3
60	M 16	-	-	-	-	75	100	125	150	200	250	75	100	125	150	123	148	173	198	50	16	4	3
80	M 8	40	50	63	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	40	18	5	3
80	M 10	50	60	80	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	43	18	5	3
80	M 12	60	80	100	125	-	-	-	-	-	-	-	-	-	-	-	-	-	-	47	18	5	3
80	M 16	-	-	-	-	75	100	125	150	200	250	75	100	125	150	125	150	175	200	52	18	5	3
80	M 20	-	-	-	-	75	100	125	150	200	250	100	125	150	200	149	174	199	249	60	18	5	3
80	M 24	-	-	-	-	100	125	150	200	300	-	100	150	200	-	174	224	274	-	-	18	5	3
100	M 8	40	50	63	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	42	20	6	3
100	M 10	50	60	80	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	45	20	6	3
100	M 12	60	80	100	125	-	-	-	-	-	-	-	-	-	-	-	-	-	-	49	20	6	3
100	M 16	-	-	-	-	75	100	125	150	200	250	75	100	125	150	126	151	176	201	54	20	6	3
100	M 20	-	-	-	-	75	100	125	150	200	250	100	125	150	200	151	176	201	251	62	20	6	3
100	M 24	-	-	-	-	100	125	150	200	300	-	100	150	200	-	176	226	276	-	-	20	6	3
120	M 20	-	-	-	-	100	125	150	200	250	-	-	-	-	-	-	-	-	-	65	22	6	4
120	M 24	-	-	-	-	100	125	150	200	300	-	-	-	-	-	-	-	-	-	-	22	6	4
120	M 30	-	-	-	-	100	125	150	200	300	-	-	-	-	-	-	-	-	-	-	22	6	4

Show / Hide columns

d₁	d₂	d₃	h₃ +4	h₄ +4	h₅ +4	l₄	l₅	l₆	A/F₁	A/F₂	A/F₃	A/F₄	A/F₅	A/F₆	A/F₇	t

50	M 8	-	23	-	-	-	-	-	17	-	-	-	-	-	14	8
50	M 10	-	23	-	-	-	-	-	17	-	-	-	-	-	14	10
50	M 12	-	23	-	-	-	-	-	17	-	-	-	-	-	17	12
50	M 16	-	-	29	-	-	-	-	-	12	8	-	-	-	22	16
60	M 8	-	24	-	-	-	-	-	17	-	-	-	-	-	14	8
60	M 10	-	24	-	-	-	-	-	17	-	-	-	-	-	14	10
60	M 12	-	24	-	-	-	-	-	17	-	-	-	-	-	17	12
60	M 16	24	-	30	27	45	45	29	-	12	8	10	12	20	22	16
80	M 8	-	26	-	-	-	-	-	17	-	-	-	-	-	14	8
80	M 10	-	26	-	-	-	-	-	17	-	-	-	-	-	14	10
80	M 12	-	26	-	-	-	-	-	17	-	-	-	-	-	17	12
80	M 16	24	-	32	29	45	45	29	-	12	8	10	12	20	22	16
80	M 20	30	-	33	30	56	56	36	-	15	10	13	16	24	27	20
80	M 24	35	-	36	33	67	67	42	-	19	12	17	20	30	-	-
100	M 8	-	28	-	-	-	-	-	17	-	-	-	-	-	14	8
100	M 10	-	28	-	-	-	-	-	17	-	-	-	-	-	14	10
100	M 12	-	28	-	-	-	-	-	17	-	-	-	-	-	17	12
100	M 16	24	-	34	31	45	45	29	-	12	8	10	12	20	22	16
100	M 20	30	-	35	32	56	56	36	-	15	10	13	16	24	27	20
100	M 24	35	-	38	35	67	67	42	-	19	12	17	20	30	-	-
120	M 20	-	-	39	-	-	-	-	-	15	10	-	-	-	27	20
120	M 24	-	-	42	-	-	-	-	-	19	12	-	-	-	-	-
120	M 30	-	-	46	-	-	-	-	-	24	12	-	-	-	-	-

Show / Hide columns

d₁	d₂	Static load F_S in kN Version S / SK Type B1 / B3 / C3	Type B2 / B4 / C4	Version T / TK and U / UK Type B1 / B3 / C3	Type B2 / B4 / C4	Version V / VK and W Type B1 / B3 / C3	Type B2 / B4 / C4	Version X Type B1 / B3 / C3	Type B2 / B4 / C4

50	M 8	8	8	-	-	-	-	8	8
50	M 10	14	14	-	-	-	-	13	13
50	M 12	20	20	-	-	-	-	20	20
50	M 16	-	-	28	28	-	-	28	25
60	M 8	8	8	-	-	-	-	8	8
60	M 10	14	14	-	-	-	-	13	13
60	M 12	20	20	-	-	-	-	20	20
60	M 16	-	-	28	25	27	27	28	25
80	M 8	8	8	-	-	-	-	8	8
80	M 10	14	14	-	-	-	-	13	13
80	M 12	19	15	-	-	-	-	15	15
80	M 16	-	-	19	15	24	24	19	15
80	M 20	-	-	19	15	24	24	19	15
80	M 24	-	-	19	15	24	24	-	-
100	M 8	8	8	-	-	-	-	8	8
100	M 10	14	14	-	-	-	-	13	13
100	M 12	17	14	-	-	-	-	17	14
100	M 16	-	-	17	14	21	21	17	14
100	M 20	-	-	17	14	21	21	17	14
100	M 24	-	-	17	14	21	21	-	-
120	M 20	-	-	25	22	-	-	25	22
120	M 24	-	-	25	22	-	-	-	-
120	M 30	-	-	25	22	-	-	-	-

* only available for the dimensions d₁ = 60, 80 and 100.
