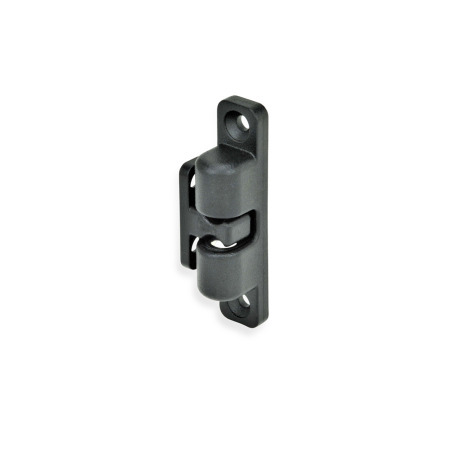

GN 4490 Ball Catches Zinc Die Casting

Ball Catches GN 4490: Zinc Die Casting
Type ball housing: A1 - With countersunk holes, normal clamping force
Type retaining element: AG - With countersunk holes, straight
Finish: SW - Black, RAL 9005, textured finish
Accessories-for-profile-systems

Accessories for profile systems

Standard Parts in this product family are compatible with the most common aluminium profile systems. Using matching assembly sets, the Ganter standard elements are easily and cost-effectively connected with the profiles without the time-consuming compiling of individual parts in the order.

  • compatible with the common profile systems
  • for groove widths of 6, 8 and 10 mm
  • for profiles 30, 40 and 45 mm
Show all compatible products
Plastic Characteristics Stainless Steel Characteristics

Product description

Ball catches GN 4490 are used, for example, to hold flaps and doors closed that must be opened and closed frequently and easily.

The ball catches consist of a ball housing and a retaining element that snaps into the ball housing from the side or front.

Depending on the installation situation, the use of mounting plates GN 4490.1 may be required (see application examples). The slotted holes facilitate positioning. Depending on the slot width, mounting plates GN 4490.2 must be used when fastening the mounting blocks to aluminum profiles.

Specification

Ball housing / Retaining element
Zinc die castingZD
Powder coated
Black, RAL 9005, textured finishSWSW
Silver, RAL 9006, textured finishSRSR

Ball
Stainless steel AISI 420C

Spring
Stainless steel AISI 301

Ball guide
Plastic, Polyacetal (POM)

RoHS

Accessory

Mounting Plates GN 4490.1 (for Ball Housings)
Mounting Plates GN 4490.2 (for Retaining Elements)

On request

  • Other colors
GN 4490 Ball Catches, Zinc Die Casting sketch
Hide technical drawing
GN 4490 Ball Catches, Zinc Die Casting sketch

Article options / Table

Type ball housing

A1With countersunk holes, normal clamping force
A2With countersunk holes, enhanced clamping force
B1With internal thread, normal clamping force
B2With internal thread, enhanced clamping force

Type retaining element

AGWith countersunk holes, straight
BGWith internal thread, straight
Show / Hide columns
l1a1a2
Type retaining element
AG

BG		a3
Type retaining element
AG

BG		b1b2b3d1d2
387,57,5111518,5874,33,4M 3
509,510,5152024,512106,54,4M 4
68111216,52327,514,5119,54,4M 4
80131420273316,513115,4M 5
Show / Hide columns
l1l2
Type retaining element
AG

BG		m1m2s1s2s3
Type retaining element
AG

BG		tHolding force FH in N ≈
Type ball housing
A1 / B1

A2 / B2
3821183012411,52,5662535
5030264017515,53,5894070
6832,5285520518,53,581275100
804037,56525621,541015125150

Build & Price
Material

l1
Type ball housing




Type retaining element


Finish
Silver
Black
Specifications

Material

l1
Type ball housing




Type retaining element


Finish
Silver
Black

Application Examples
2ce7eabc-4001-48e8-9dbf-4938b55e2cf8

Selected Part (How to order)

Total (net)
3,63 €
plus VAT 0,69 €
gross 4,32 €
In stock
Weight: 0,012 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
83024900
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
