Product Family: Accessories for profile systems (96 Hits) You are here: Product Overview  >  3.3 Hinging, Latching, Locking of Doors and Covers  >  Hinges  >  GN 159 Hinges previous product next product

GN 159 Hinges Plastic, Accessory for Profile Systems

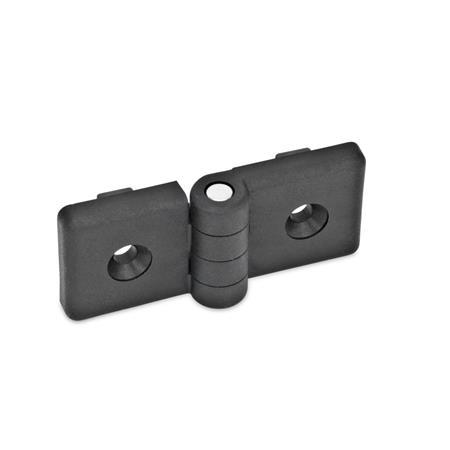

GN 159 Hinges for Profile Systems, Plastic Color: SW - Black, matte finish Identification no.: 1 - Without safety hand levers
ELESA original design
code: CFG./CFG-ERS
Color: SW - Black, matte finish
Identification no.: 1 - Without safety hand levers
GN 159 Hinges for Profile Systems, Plastic Color: SW - Black, matte finish Identification no.: 1 - Without safety hand levers GN 159 Hinges for Profile Systems, Plastic Color: LG - Gray, matte finish Identification no.: 1 - Without safety hand levers GN 159 Hinges for Profile Systems, Plastic Color: LG - Gray, matte finish Identification no.: 2 - With safety hand levers GN 159 Hinges for Profile Systems, Plastic Color: SW - Black, matte finish Identification no.: 2 - With safety hand levers
Accessories-for-profile-systems
Print this page Product Family Standard Parts for Profile Systems List of Hinge Types Positioning elements / Application example Plastic Characteristics Load Rating Information for Plastic Hinges Overview to appropriate standards of the assembly sets GN 965 Overview to appropriate standards of the assembly sets GN 968

Product description

Information

Hinges GN 159 are suitable for simple installation on standard commercially available extrusions to support the weight of a door by utilising the enclosed rectangular positioning elements. These are simply clipped into recesses in the hinge wings.

For every profile combination s1 - s2, the positioning elements in the commercial groove widths b are included.

Assembly sets GN 965 / GN 968 are used for the assembly on profile rails.

Specification

Plastic (Polyamide PA)
  • Black, matte finishSWSW
  • Gray, matte finishLGLG
  • Temperature resistant up to 130 °C
Pin
Steel, nickel plated
Safety hand levers GN 604.2
  • Plastic (Polyamide PA)
    Black, matte finish
  • Washer
    Steel, zinc plated

RoHS

Technical drawing

3D
GN 159 Hinges for Profile Systems, Plastic sketch
Hide technical drawing
GN 159 Hinges for Profile Systems, Plastic sketch

Article options / Table

Identification no.

1Without safety hand levers
2With safety hand levers
Show / Hide columns
l1m1
Nominal dimension
Actual dimension		m2
Nominal dimension
Actual dimension		d1d2h1h2h3h4l2l3l4for profile widths
s1 - s2
541717.51717.56.58168163836274430 - 30
641717.52222.56.58168163836274430 - 40
691717.525256.58168163836274430 - 45
841717.53232.56.58168163836274430 - 60
742222.52222.56.58168163836374440 - 40
792222.525256.58168163836374440 - 45
942222.53232.56.58168163836374440 - 60
84252525256.58168161636424445 - 45
9925253232.56.58168163836424445 - 60
1143232.53232.56.58168163836574460 - 60

Build & Price

Open 3D configurator
Width l1
Bore distance m1
Bore distance m2
Color
LG
SW
Identification no.


Application example

Drawing Application example GN 159

Positioning elements

Skizze GN 159 Positionierelemente
Show / Hide columns

Profile width		b
Nut width		a
3062
3082
40 + 4584
40 + 45104
60105
60125

The positioning elements are clipped into the corresponding recesses of the hinge wing.

Selected Part (How to order)

Total (net)
5,71 €
plus VAT 1,08 €
gross 6,79 €
In stock
Weight: 0,032 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Please note our quantity discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 50,00 €
All prices in accordance with our price list No. 54, valid from 1 May 2022, plus VAT only valid for Germany.
