GN 476 T-Mounting Clamps Aluminum

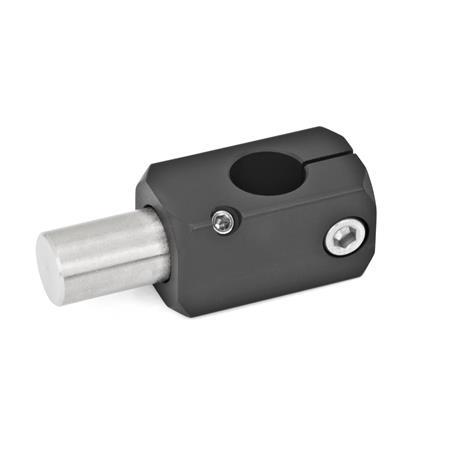

GN 476 T-Mounting Clamps, Aluminum Finish: ELS - Anodized, black
Type: W - with Bolt
Finish: ELS - Anodized, black
Type: W - with Bolt
GN 476 T-Mounting Clamps, Aluminum Finish: ELS - Anodized, black
Type: W - with Bolt GN 476 T-Mounting Clamps, Aluminum Finish: ELS - Anodized, black
Type: A - with Bore GN 476 T-Mounting Clamps, Aluminum Finish: MT - Matte, ground
Type: A - with Bore GN 476 T-Mounting Clamps, Aluminum Finish: MT - Matte, ground
Type: W - with Bolt

Product description

Information

The T-mounting clamps GN 476 (Type W) are an alternative to twistable two-way mounting clamps GN 475 if high angular forces are required.

In the standard version, the clamping screw at the clamping thread d4 is a socket cap screw with hexagonal socket DIN 912. It can be replaced by a clamping kit GN 511 (article code see table of dimensions).

Specification

Aluminum

  • Matte, groundMT
  • Anodized, blackELS

Bolt (Type W)
Stainless steel AISI 303


Socket cap screws DIN 912
Stainless steel AISI 304


Grub screw DIN 913 (Type A)
Stainless steel AISI 304


Grub screw DIN 915 (Type W)
Stainless steel AISI 304


RoHS

Technical drawing

3D
Hide technical drawing
GN 476 T-Mounting Clamps, Aluminum sketch

Article options / Table

Type

Awith Bore
Wwith Bolt
Show / Hide columns
d1
Bore
for
shaft tol. h11
d2
Type A
d3
Type W
d4
Clamping
thread
d5kl1l2l3l4s
Square
tClamping kits for d4
B 8B 88M 4M 4161613265,5-8GN 511-M4-16
B 10B 1010M 5M 5201715,531,57810GN 511-M5-20
B 12B 1212M 5M 5201916,535,581012GN 511-M5-20
B 15B 1515M 6M 625212043,5101215GN 511-M6-25
B 16B 1616M 6M 62524204511-16GN 511-M6-25
B 20B 2020M 6M 630262251121618GN 511-M6-30

Build & Price

Open 3D configurator
Bore d1
Bore d2
Diameter d3
Type


Finish

Selected Part (How to order)

Total (net)
10,08
plus VAT 1,92 €
gross 12,00 €
In stock
incl. material surcharge: 0,09 €
The material surcharge is already included in the price.
Weight: 0,025 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
