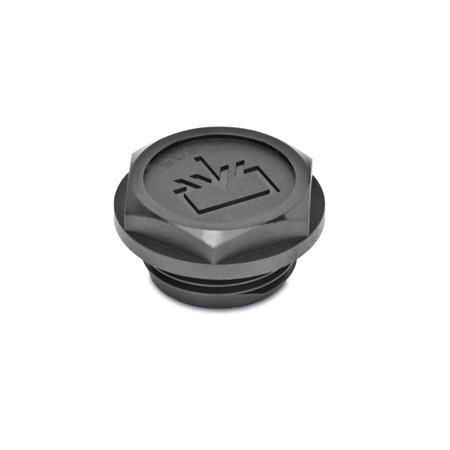

GN 747.2 Threaded Plugs Plastic, O-Ring Collared, with DIN-Re-Fill Symbol

Threaded Plugs GN 747.2: Plastic, O-Ring Collared, with DIN-Re-Fill Symbol
ELESA Original design
code: TCR.

Product description

Specification

Threaded plug
Plastic Polyamide (PA)

  • Glass fiber reinforced
  • Black, matte finish

O-Ring
Acrylonitrile butadiene rubber (NBR)


Operating temperature -30 °C to +100 °C


RoHS

Accessory

Welding Sockets GN 7490 (Steel)
Welding Sockets GN 7490 (Stainless Steel)

On request

  • Metric threads
Hide technical drawing
GN 747.2 Threaded Plugs, Plastic, O-Ring Collared, with DIN-Re-Fill Symbol sketch

Article options / Table

Type

AWithout dipstick

Identification no.

1Without vent hole
Show / Hide columns
d1d3e2l1l4s2
G 1/4152291719
G 3/81725,591822
G 1/220,532112027
G 3/42537122232
G 13144132338
G 1 1/43853,5142646
G 1 1/24663,5152855

Build & Price

Inch thread d1
Type

Identification no.

Inch thread d1
Type

Identification no.

Selected Part (How to order)

Total (net)
1,87
plus VAT 0,36 €
gross 2,23 €
In stock
ELESA Code: 158695
Description: TCR.1/4
Weight: 0,004 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
39235090
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
Save as favourite
Recommend a product

CAD data

Other data formats

Quick-Login

For getting CAD data please enter you Email address. But we would be pleased, if you are fully registered.

CAD Download Tutorial About CAD-Downloads

Do you find your product ?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM: +49 7723 6507 - 0

To the customised elements | To the contact persons

GN 747.2-G1/4-A-1GN 747.2-G3/8-A-1GN 747.2-G1/2-A-1GN 747.2-G3/4-A-1GN 747.2-G1-A-1GN 747.2-G11/4-A-1GN 747.2-G11/2-A-1
