GN 453 Buffers Stainless Steel

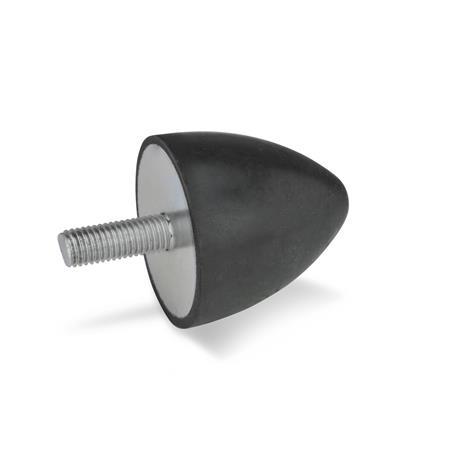

GN 453 Buffers, Stainless Steel Type: S - With threaded stud
Type: S - With threaded stud
GN 453 Buffers, Stainless Steel Type: S - With threaded stud GN 453 Buffers, Stainless Steel Type: E - With internal thread

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products

Product description


Buffers GN 453 are used as end-stop buffers, e .g. for conveyor trolleys.

They absorb most of the kinetic energy developing on impact. They act as dampers and prevent damaging shock and rebound. They also act as sound dampers.

The parabolic shape of these buffers generates progressive resilience characteristics: impact and shock effects are absorbed gentler.


Natural rubber (NR)
  • Black
  • Vulcanized to the cover plates
  • Temperature resistant up to 80 °C
  • Hardness Shore A ±5

Cover plates, threaded bushings, threaded studs
Stainless steel AISI 304


On request

Rubber in gray

Technical drawing

Hide technical drawing
GN 453 Buffers, Stainless Steel sketch

Article options / Table


EWith internal thread
SWith threaded stud
Show / Hide columns
d1hd2Length lstSpring rate ≈ N/mm
Hardness 40

Hardness 55

Hardness 70
max. load in N
Hardness 40

Hardness 55

Hardness 70
max. travel ≈
in mm
1010M 5121,2514204046591133
2015M 618263049781301953204
2024M 61826142255821303306
2520M 61826163896841904955
3030M 818262535841902606307,5
3036M 820282036721803206509
3540M 8232826306326030063010
5050M 102828547890675970112012,5
5061M 828283239100490600152015,25
5068M 1028285252115890890195017
7058M 12373118211014011501520199014
7589M 1237311669812513301960254020
* not available from stock, requires a minimum order quantity

Build & Price

Open 3D configurator
Outside diameter d1
Height h
Thread d2


Selected Part (How to order)

Total (net)
plus VAT 0,35 €
gross 2,20 €
In stock
Weight: 0,003 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 50,00 €
All prices in accordance with our price list No. 55, valid from 1 September 2022, plus VAT only valid for Germany.
