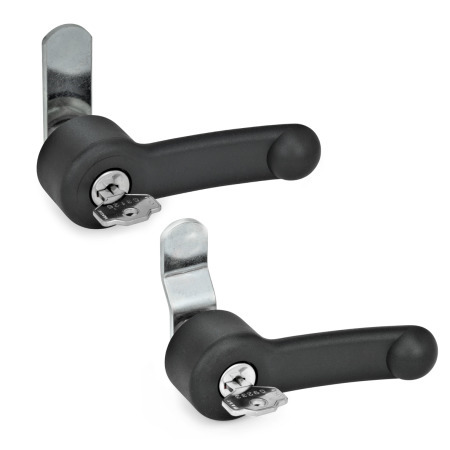

GN 623.1LatchesLever Plastic / Latch Arm Steel, Operation with Lever, with / without Lock
Original design code: ELCK
Form: SL - With lock, lockable by turning left (different locks)
Product Family Ergostyle
Ergostyle standard parts combine functional and ergonomic operation with attractive appearance. Numerous design awards are proof of the high quality claim. The hallmark of Ergostyle products are five small dots.
Latches GN 623.1 lock by a turning operation limited to 90°, which moves the latch arm in the locked position behind the door frame.
Latch arms with different bend angles cover a latch arm distance A of 10 and 18 mm. The positioning of the 90° rotation range is determined by the orientation of the notch in the mounting hole. In addition, the latch arm can be mounted in various orientations in 90° steps.
The latches with lock are supplied with 2 keys. The key can be removed in both end positions.
For parts that take different locks, 400 different lock variants are available with correspondingly numbered keys.
Specification
Lever
Plastic, Polyamid (PA)
Glass fiber reinforced
Operating temperature -20 °C to +80 °C
Black-gray, matte, similar to RAL 7021
Latch arm
Sheet steel, zinc plated
Key
Brass nickel plated
Other parts
Steel zinc plated resp. brass
or stainless steel
RoHS
On request
Same lock
Different locks, with general key
Hide technical drawing
Article options / Table
Form
SL
With lock, lockable by turning left (different locks)
SR
With lock, lockable by turning right (different locks)
If this article is new in our product range, it may happen that details concerning weight are as yet not listed. If you do need weight details, please contact our Sales Department! Phone+49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
83016000
