You are here: Product Overview  >  3.3 Hinging, Latching, Locking of Doors and Covers  >  Hinges  >  GN 155 Hinges previous product next product

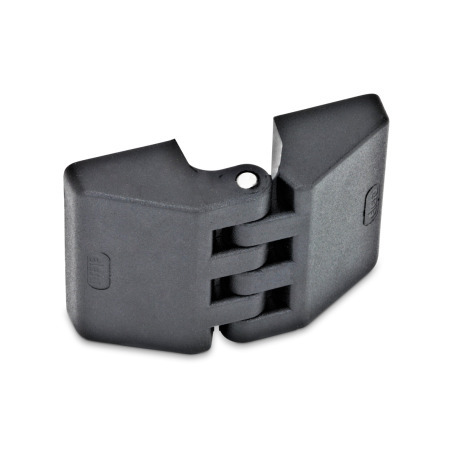

GN 155 Hinges Plastic


GN 155 Hinges, Plastic Type: A - 2x2 threaded blind bores
ELESA original design
code: CFE.
Type: A - 2x2 threaded blind bores
GN 155 Hinges, Plastic Type: A - 2x2 threaded blind bores GN 155 Hinges, Plastic Type: B - 2x2 bores for socket cap screws GN 155 Hinges, Plastic Type: C - 2x2 threaded studs GN 155 Hinges, Plastic Type: D - 2x threaded blind bores / 2x threaded studs GN 155 Hinges, Plastic Type: E - 2x threaded blind bores / 2x bores for socket cap screws GN 155 Hinges, Plastic Type: F - 2x threaded studs / 2x bores for socket cap screws
Standard sheet GN 155 Print this page List of Hinge Types Plastic Characteristics Stainless Steel Characteristics Load Rating Information for Plastic Hinges

Product description

Specification

Plastic (Polyamide PA)

  • Black, matte finish
  • Temperature resistant up to 80 °C

Pin
Stainless steel AISI 303

Threaded bushings
Brass, nickel plated

Threaded studs
Brass, nickel plated

RoHS

Technical drawing

3D
GN 155 Hinges, Plastic sketch
Hide technical drawing
GN 155 Hinges, Plastic sketch

Article options / Table

Form

A2x2 threaded blind bores
B2x2 bores for socket cap screws
C2x2 threaded studs
D2x threaded blind bores / 2x threaded studs
E2x threaded blind bores / 2x bores for socket cap screws
F2x threaded studs / 2x bores for socket cap screws
Show / Hide columns
l1
Nominal
dimension
Actual
dimension		l2
Nominal
dimension
Actual
dimension		d1d2d3h1h2l3l4l5m1 ± 0,3m2 ± 0,3rt
4545,53030,5M 33,32,512,59,515134301554
58594040,5M 44,3416,512,52018640,42065,5
70704848,5M 55,55201524178462476,5
97976666M 66,5627,52133161063,73389

Build & Price

Open 3D configurator
Width l1
Length l2
Type






Selected Part (How to order)

Total (net)
6,19 €
plus VAT 1,18 €
gross 7,37 €
In stock
ELESA Code: 423111
Description: CFE.30 B-M3
Weight: 0,011 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 50,00 €
All prices in accordance with our price list No. 55, valid from 1 September 2022, plus VAT only valid for Germany.
