GN 6343 Washers / Leveling Disks Stainless Steel

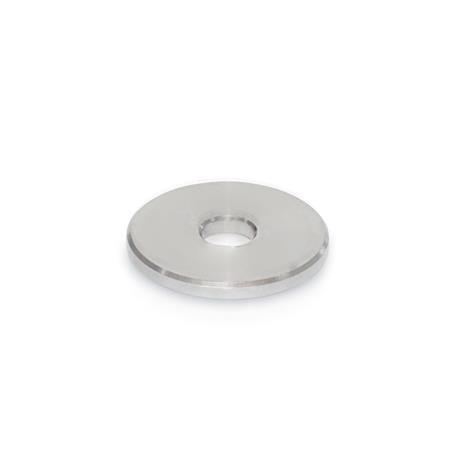

Washers / Leveling Disks GN 6343: Stainless Steel
Stainless-Steel-Quality-Class-2

Product Family Stainless Steel Quality Class 2

The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.

For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:

Edelstahl Güteklasse 1 Stainless Steel Quality Class 1

Edelstahl Güteklasse 2 Stainless Steel Quality Class 2

Edelstahl Güteklasse 4 Stainless Steel Quality Class 4

Show detailed information on the stainless steel quality classes

Show all stainless steel products
Stainless Steel Characteristics

Product description

Washers / Leveling disks GN 6343 are used mainly in mechanical engineering and jigmaking if shimming is required for levelling.

Specification

Stainless steel AISI 304NI
Turned, plain

RoHS

On request

  • Other dimensions
  • Chemically blackened surface
GN 6343 Washers / Leveling Disks, Stainless Steel sketch
Hide technical drawing
GN 6343 Washers / Leveling Disks, Stainless Steel sketch

Article options / Table
d1 +0,1/+0,3d2 -0,2s ±0,1
4812-
412123
510123
51523-
612123
620235
816235
825235
1020235
103035-
1220235
123035-
1620235
163035-

Build & Price
Material

Inner diameter d1
Outer diameter d2
Thickness s
Material

Inner diameter d1
Outer diameter d2
Thickness s

Selected Part (How to order)

Total (net)
1,24 €
plus VAT 0,24 €
gross 1,48 €
Weight: 0,002 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
73182200
Please note our order discounts.
With a total value (net) per order:
from 200,00 € -> 10 % discount
from 300,00 € -> 20 % discount
from 400,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
Create project list
Save as favourite
Recommend a product

Stock availability

  • 784 pcs. deliverable in 1-2 days
  • For orders of 785 pcs. or more, please contact us regarding delivery time.

CAD data

Other data formats

Quick-Login

For getting CAD data please enter you Email address. But we would be pleased, if you are fully registered.

CAD Download Tutorial About CAD-Downloads

Do you find your product ?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM: +49 7723 6507 - 0

To the customised elements | To the contact persons

GN 6343-NI-4-8-1GN 6343-NI-4-8-2GN 6343-NI-4-12-1GN 6343-NI-4-12-2GN 6343-NI-4-12-3GN 6343-NI-5-10-1GN 6343-NI-5-10-2GN 6343-NI-5-10-3GN 6343-NI-5-15-2GN 6343-NI-5-15-3GN 6343-NI-6-12-1GN 6343-NI-6-12-2GN 6343-NI-6-12-3GN 6343-NI-6-20-2GN 6343-NI-6-20-3GN 6343-NI-6-20-5GN 6343-NI-8-16-2GN 6343-NI-8-16-3GN 6343-NI-8-16-5GN 6343-NI-8-25-2GN 6343-NI-8-25-3GN 6343-NI-8-25-5GN 6343-NI-10-20-2GN 6343-NI-10-20-3GN 6343-NI-10-20-5GN 6343-NI-10-30-3GN 6343-NI-10-30-5GN 6343-NI-12-20-2GN 6343-NI-12-20-3GN 6343-NI-12-20-5GN 6343-NI-12-30-3GN 6343-NI-12-30-5GN 6343-NI-16-20-2GN 6343-NI-16-20-3GN 6343-NI-16-20-5GN 6343-NI-16-30-3GN 6343-NI-16-30-5
