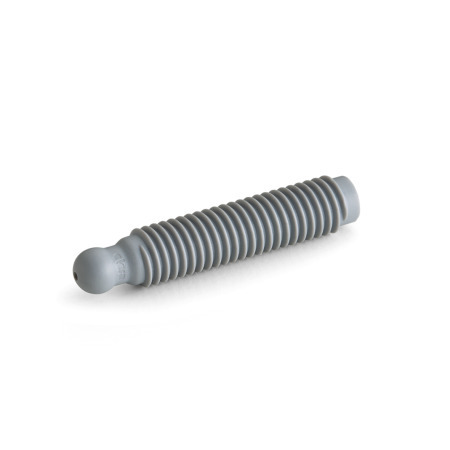

Grub screws GN 632.9 with ball pin are made of plastic, making them lightweight, resistant to corrosion and electrically insulating.
They are used with thrust pads GN 631, GN 631.2 and GN 631.5 for clamping and pressing.
Together with the thrust pad, the ball pin forms a ball joint that adapts to clamping surfaces that are uneven or not perpendicular to the screw axis. It also prevents the rotational movement from being transferred to the clamping surface during clamping.
The ball diameter d2 is smaller than the core diameter of the thread, so that the grub screw can be screwed in on the ball side.
The ball pin snaps securely into the respective thrust pad and can be removed again if necessary.
If this article is new in our product range, it may happen that details concerning weight are as yet not listed. If you do need weight details, please contact our Sales Department! Phone+49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
39269097
Please note our order discounts.
With a total value (net) per order: from 175,00 € -> 10 % discount from 275,00 € -> 20 % discount from 375,00 € -> 30 % discount
Surcharge for small volume purchases: -> 15,00 Euro for value of goods less than 25,00 € -> 10,00 Euro for value of goods from 25,00 to 49,99 €
Original design GST-SB
, RAL 9005, matte finish
RAL 7040, matte finish
