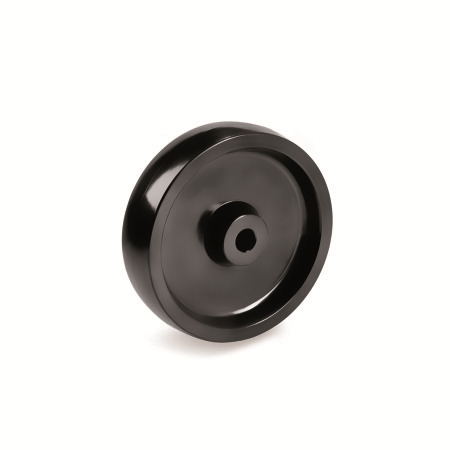

GN 22894 Wheels Phenolic

Original design RE.F7-HT

Bearing type: B - Bore
Type: A - Wheel without bracket

General Notes and Overview of Types Operating Conditions and Technical Information Plastic Characteristics

Product description

Wheels GN 22894 are used in industrial and public indoor areas for moving transport carts, for example.

They are characterized by their high operating temperature.

Specification

Wheel tread / Wheel core
Plastic, Phenolic (PF)

Single part
Black
Hardness 90 Shore D

Bearing type G

Friction bearing
Plastic, polytetrafluoroethylene (PTFE)
Viti / Dadi
Steel
Axis
Stainless steel

Operating temperature -20 °C to +300 °C

RoHS

Hide technical drawing

Article options / Table

Bearing type

B	Bore
G	Friction bearing

Type

A	Wheel without bracket

Show / Hide columns

d₁ Wheel Ø	b₁	b₂	d₂	d₃	l₁	l₂	s	A/F	Recommended ergonomic max. load in N	Max. static load capacity in N	Max.  dynamic load capacity in N

80	35	39	12	M 8	55	5,5	2,5	13	1250	2500	1500
100	35	44	12	M 8	60	5,5	2,5	13	1300	3000	2000

Build & Price

Specifications

GN 22894 Wheels, Phenolic

GN 22894 Medium Duty Casters, Phenolic Resin, Light Version, for High Temperatures

Wheel Ø d₁

100

Bearing type

B - Bore

G - Friction bearing

Type

A - Wheel without bracket

Suitable for floor type

The type of the floor and the possible obstacles are factors that influence the amount of force required to move the cart as well as the transmission of vibrations and the wear on the wheel.
Based on the characteristics of the floor, the guidelines apply to selecting the right wheel:

For irregular floors and in the case of obstacles, the wheels should have soft and thick tread and large diameter.
For smooth floors and heavy loads, the wheels should have hard tread.

The following table shows the suitable floor type for each wheel in simplified form.

Show / Hide columns

Standard	Tiles	Asphalt	Cement-resin, concrete	Unpaved floor	Grate floor	Floor with chips	Floor with obstacles

GN 22870	x	-	-	-	-	-	x
GN 22872	x	-	x	-	-	-	-
GN 22873	x	x	x	x	x	x	x
GN 22874	x	x	x	x	x	x	x
GN 22875	x	x	x	x	x	x	x
GN 22880	x	-	x	-	-	-	x
GN 22882	x	-	x	-	-	-	-
GN 22884	x	-	x	-	-	-	x
GN 22885	x	-	x	-	-	-	-
GN 22886	x	x	x	x	x	x	x
GN 22887	x	-	x	-	-	-	-
GN 22892	x	-	x	-	-	-	-
GN 22894	x	-	x	-	-	-	-
GN 22868	x	-	x	-	-	-	-

Selected Part (How to order)

Part number

Total (net)

6,11 €

plus VAT 1,16 €
gross 7,27 €

In stock

ELESA Code: 448531

Description: RE.F7-080-RBL-HT

Weight: 0,180 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

83022000

Please note our order discounts.

With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
