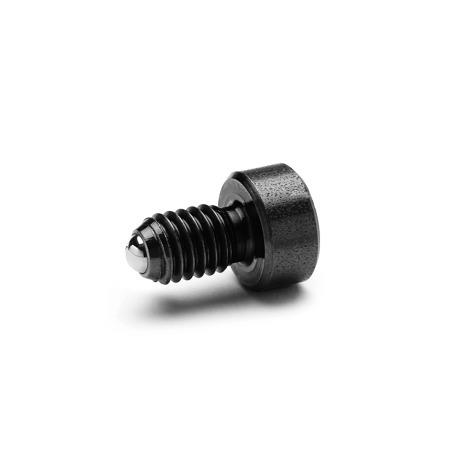

Spring plungers GN 815.1 are used as stops as well as thrust elements or ejectors.
The collar gives a defined installation position.
Specification
Housing
Steel, blackened
Ball
Steel, hardened
RoHS
GN 815.1 Spring Plungers Steel, with Collar, with Internal Hex
Hide technical drawing
Article options / Table
Type
| ST | Steel, standard spring load |
| STS | Steel, high spring load |
Show / Hide columns
| d1 | d2 | d3 | l1 | l2 | l3 | w compression | A/F | Spring load in N ≈ standard (Type ST) Initial | End | Spring load in N ≈ high (Type STS) Initial | End |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M 4 | 2,5 | 6 | 9 | 3 | 7,5 | 0,8 | 2 | 8 | 14 | 12 | 18 |
| M 5 | 3 | 8 | 10 | 4 | 8,2 | 0,9 | 2,5 | 8 | 14 | 15 | 22 |
| M 6 | 3,5 | 10 | 10 | 5 | - | 1 | 3 | 11 | 18 | 19,3 | 26,6 |
| M 8 | 4,5 | 13 | 12,5 | 5,5 | - | 1,5 | 4 | 18 | 31 | 36 | 60,5 |
| M 10 | 6 | 16 | 17 | 6 | - | 2 | 5 | 24 | 45 | 57 | 103,5 |
| M 12 | 8 | 18 | 19 | 7 | - | 2,5 | 6 | 26 | 49 | 61 | 110 |
Build & Price
Selected Part (How to order)
Total (net)
3,40
€
plus VAT 0,65 €
gross 4,05 €
gross 4,05 €
Weight: 0,001 kg
