GN 615.8 Spring plungers Ball with friction bearing, with slot

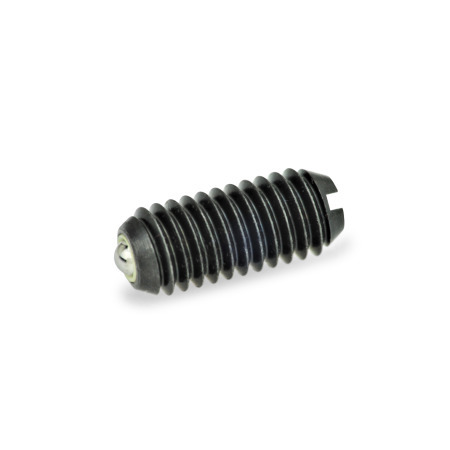

GN 615.8 Spring plungers, ball with friction bearing, with slot, steel Type: K - Steel, standard spring load
Type: K - Steel, standard spring load
GN 615.8 Spring plungers, ball with friction bearing, with slot, steel Type: K - Steel, standard spring load GN 615.8 Spring plungers, ball with friction bearing, with slot, steel Type: KS - Steel, high spring load

Product description

Information

GN 615.8 Spring plungers are used for locking as well as for pressure and hold-off functions.

The ball is mounted in a plastic shell so as to be freely movable, which enables rolling and therefor generally optimizes the locking characteristics. Above all, this reduces wear on the counter piece.

A further characteristic of these plungers is that the plastic bearing acts as an electrical insulator.

Specification

Housing
Steel
blackened

Ball
Steel
hardened

Spring
Stainless Steel AISI 631

Friction bearing
  • Plastic
  • temperature resistant up to 90 °C

Identification of type KS:
Housing with 2 longitudinal markings


RoHS

Technical drawing

3D
Hide technical drawing
GN 615.8 Spring plungers, ball with friction bearing, with slot, steel sketch

Article options / Table

Type

KSteel, standard spring load
KSSteel, high spring load
Show / Hide columns
d1
d2Length lw
compression
Spring load in N ≈
standard (Type K)
initial


end
Spring load in N ≈
high (Type KS)
initial


end
M 52120,54,86,81014
M 62,5140,76,3101116
M 83,5160,9516242340
M 104,5191,418,831,72854,3
M 126,5222,3264939,577,3
M 168,5243,138685088,7

Build & Price

Specifications

Thread d1
Type


Selected Part (How to order)

Weight: 0,001 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone+49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Please note our quantity discounts.
With a total value (net) per order:
from 175,00 Euro -> 10 % discount
from 275,00 Euro -> 20 % discount
from 375,00 Euro -> 30 % discount
With a total value (net) per order:
All prices in accordance with our price list No. 52, valid from 1 May 2019, plus VAT only valid for Germany.
