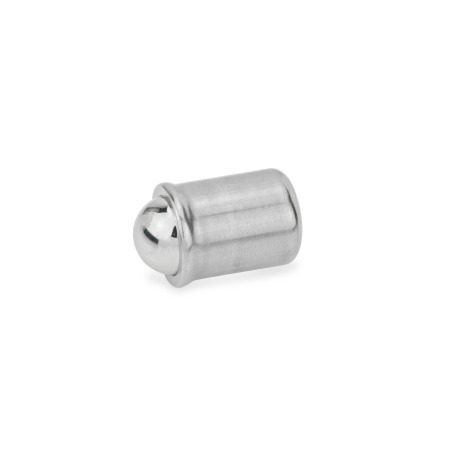

Stainless steel spring plungers GN 614 are used as detents as well as for push-on and push-off applications and ejectors.
A tolerance of H7 for the location hole of d1 is recommended.
Housing
Stainless steel AISI 305
Sheet-metal
Ball
Stainless steel AISI 420C
Hardened
Pressure spring
Stainless steel AISI 631
Identification of type NIL:
Housing with 1 longitudinal marking
Identification of type NIS:
Housing with 2 longitudinal markings
RoHS
| NI | Stainless steel, standard spring load |
| NIL | Stainless steel, light spring load |
| NIS | Stainless steel, high spring load |
| d1 +0,1 NI | NIL / NIS | d2 | d3 | l1 ≈ | l2 ≈ | w Compression | Spring load in N ≈ standard (Type NI) initial | End | Spring load in N ≈ light (Type NI) initial | End | Spring load in N ≈ high (Type NI) initial | End |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | - | 2,4 | 3,5 | 4 | 0,6 | 0,7 | 1,8 | 3,5 | - | - | - | - |
| 4 | 4 | 3 | 4,6 | 5 | 0,9 | 1 | 2,5 | 6 | 0,4 | 1 | 5 | 10,4 |
| 5 | 5 | 4 | 5,6 | 6 | 0,9 | 1,4 | 3 | 6,5 | 0,5 | 4,7 | 6 | 12 |
| 6 | 6 | 5 | 6,5 | 7 | 1 | 1,8 | 5,5 | 11,5 | 2,3 | 6,5 | 7,3 | 19 |
| 8 | 8 | 6,5 | 8,5 | 9 | 1,1 | 2,4 | 7 | 12,5 | 4 | 9 | 11 | 25 |
| 10 | 10 | 8,5 | 11 | 13 | 1,5 | 3,3 | 8,5 | 18,5 | 3,9 | 10 | 17 | 37 |
| 12 | 12 | 10 | 13 | 16 | 2,3 | 4 | 12 | 26,5 | 6,2 | 14,6 | 30 | 54 |
