GN 817.1 Indexing Plungers with Red Knob Zinc Die Casting, with Flange for Surface Mounting, with or without Rest Position

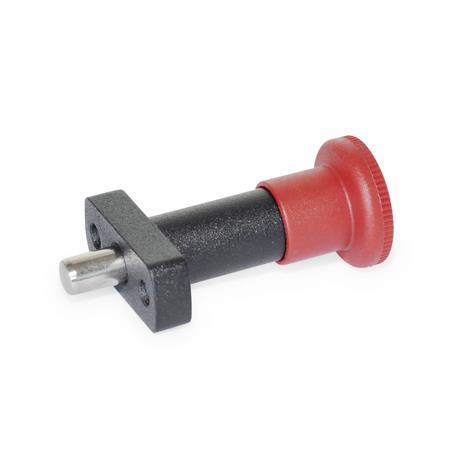

Indexing Plungers with Red Knob GN 817.1: Zinc Die Casting, with Flange for Surface Mounting, with or without Rest Position
Type: B - Without rest position
Color: RT - Red, RAL 3000
Overview of Plunger Types Load Rating Information Stainless Steel Characteristics Plastic Characteristics

Product description

Indexing plungers GN 817.1 (Type C) are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.

Specification

  • Giude
    Zinc die casting
    Powder coated
    Black, matte, textured finish
  • Plunger pin
    Stainless steel AISI 303
    Chemically nickel plated
  • Knob
    Plastic (Polyamide PA)
    • Red, RAL 3000RTRT
    • Not removable

RoHS

Accessory

Positioning Bushings GN 412.2 (Stahl)
Positioning Bushings GN 412.3

On request

  • Indexing plungers with T-Handle
GN 817.1 Indexing Plungers, Zinc Die Casting, with Flange for Surface Mounting, with or without Rest Position, with Red Knob sketch
Hide technical drawing
GN 817.1 Indexing Plungers, Zinc Die Casting, with Flange for Surface Mounting, with or without Rest Position, with Red Knob sketch

Article options / Table

Type

BWithout rest position
CWith rest position
Show / Hide columns
d1
Pin -0,02/-0,05
Bore +0,10/+0,03		l1bd2d3d4kl2l3l4Spring
load
in N≈
initial


end
6613234,33422482266,519
6913234,3342248226625
8816285,33826582688,526
81216285,33826582688,528
101216285,33826582689,538

Build & Price
Bolt diameter d1
Stroke l1
Type


Color
Red
Specifications

Bolt diameter d1
Stroke l1
Type


Color
Red

Selected Part (How to order)

Total (net)
7,79 €
plus VAT 1,48 €
gross 9,27 €
In stock
Weight: 0,038 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
73181900
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
