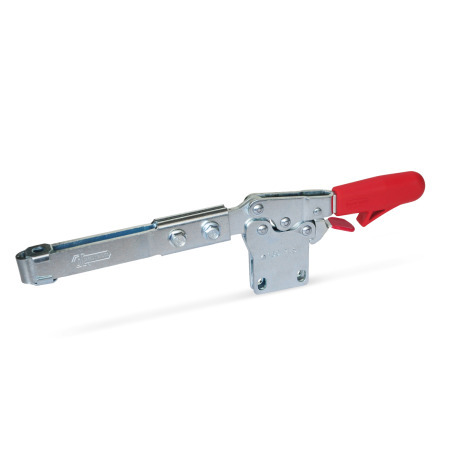

GN 820.4 toggle clamps have a safety function whereby, during closing, a spring loaded safety hook latch ensures a secure locking connection. It prevents the inadvertent unlocking of the clamp due to vibrations or an accidental attempt of loosening / opening of the clamp. To open and release the clamp, pull up on the finger grip to disengage the safety hook latch mechanism (one hand operation).
They work according to the toggle principle: lever and clamping bar move in the opposite direction. They require less space for the clamping action.
Toggle clamps in the U-bar version with two flanged washers (type VL) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for type VLC.
RoHS
| VL | Clamping arm extended, with slotted hole and with two flanged washers |
| VLC | Clamping arm extended, with slotted hole, two flanged washers and clamping screw GN 708.1 |
| Size | FH in N Holding capacity | a ≈ | b1 | b2 | b3 | b4 | d1 | d2 | h1 ≈ | h2 | h3 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 130 | 600 | 67,5 | 36 | 10 | 5 | 6,3 | M 6 | 5,6 | 64,5 | 44 | 16 |
| 230 | 1100 | 71,5 | 44 | 12 | 6 | 8,2 | M 8 | 6,6 | 75,5 | 51 | 18 |
| Size | h4 | h5 max. | l1 ≈ | l2 ≈ | l3 ≈ | l4 max. | m1 | m2 | m3 | m4 | r ≈ | w Adjustable range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 130 | 25,5 | 27,5 | 251 | 171 | 132 | 64 | 26 | 5,8 | 8,8 | 7,5 | 141 | 17,5 |
| 230 | 30 | 27 | 283 | 196 | 150,5 | 78 | 26 | 6,5 | 6,5 | 6,5 | 160 | 20 |
