Product description

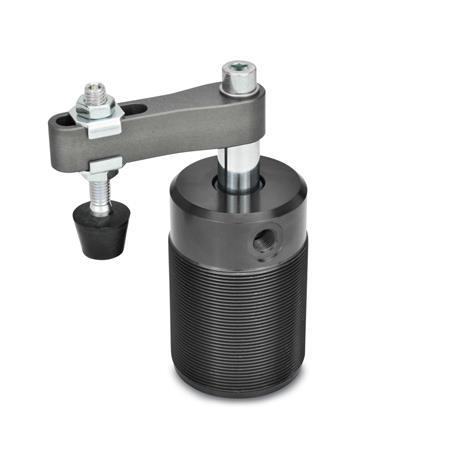

Swing clamps GN 876 are used when the clamping point for inserting and removing the workpiece must be freely accessible on top.
The design allows especially space-saving mounting. The height of the swing clamp can be adjusted via the screw-in thread.
During the clamping action, the arm is first swiveled by 90° and lowered, followed by the linear tensioning motion. The workpiece clamping must take place within the clamping stroke.
The angle orientation of the clamping arm can be set arbitrarily during mounting on the swing clamp. When tightening the screw, the piston rod must not experience any torque. The clamping arm must therefore be held to prevent twisting.
Specification
Swing clamp
Aluminum
- Hard anodized
- Wear-resistant surface
- Double-action air cylinder
Max. pressure 6 bar
Socket cap screw ISO 4762
Steel
Zinc plated, blue passivated
Washer ISO 7092
Steel
Zinc plated, blue passivated
Flanged washers GN 898 for type A / AC
Steel
Zinc plated, blue passivated
Clamping screw GN 708.1 for type AC
- Steel zinc plated, blue passivated
- Thrust pad
Chloroprene rubber (CR)- Hardness 85 Shore A ≈
- Vulcanized
- Black
- Type A (flat pressure area)
RoHS
Accessory
GN 875.2 Clamping Arms (with Slotted Hole)
GN 875.3 Clamping Arms (with threaded hole)
GN 875.4 Adapter Flanges
GN 876.1 Threaded Flanges
DIN 70852 Slotted Locknuts
