GN 5337.2 Star Knobs Plastic, Threaded Bushing Brass

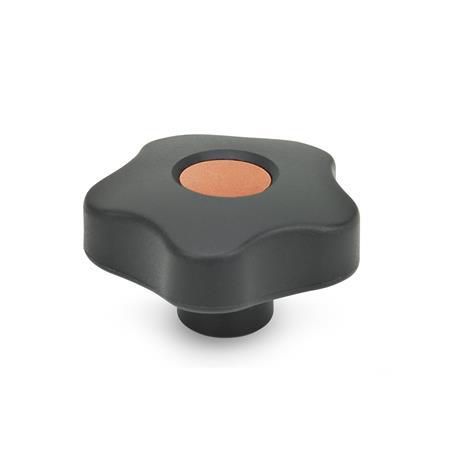

Star Knobs GN 5337.2: Plastic, Threaded Bushing Brass
Original design
code VCT.
Type: E - With cover cap (threaded blind bore)
Color of the cover cap: DOR - Orange, RAL 2004, matte finish
ISO Fundamental Tolerances Plastic Characteristics Loss protections GN 111.7

Product description

Characteristic of the star knobs GN 5337.2 is the 5 lobes. They not only give the knobs a specific style but this shape has also enabled the operator to achieve a higher torque.

Specification

Knob
Plastic, Polypropylen (PP)

  • Reinforced, shock resistant
  • Operating temperature 0 °C to +90 °C
  • Black, matte finish

Threaded bushing
Brass

Cover cap
Plastic, Polypropylen (PP)

  • Orange, RAL 2004, matte finishDORDOR
  • Gray, RAL 7035, matte finishDGRDGR
  • Yellow, RAL 1021, matte finishDGBDGB
  • Blue, RAL 5024, matte finishDBLDBL
  • Red, RAL 3000, matte finishDRTDRT
  • Green, RAL 6017, matte finishDGNDGN

RoHS

GN 5337.2 Star Knobs, Plastic, Threaded Bushing Brass, with Colored Cover Caps sketch
Hide technical drawing
GN 5337.2 Star Knobs, Plastic, Threaded Bushing Brass, with Colored Cover Caps sketch

Article options / Table

Type

EWith cover cap (threaded blind bore)
Show / Hide columns
d1d2
Type E		d5d6h1h2t1
32M 5M 6M 81510231012
40M 6M 8-1713271218
40M 10--1713271217
50M 8M 10M 121915321420
63M 8M 10M 122219371626
74M 12M 14-261743,52226
74M 16--261743,52231
84M 12M 16-2822442125

Build & Price
Handle diameter d1
Thread d2 (Type E)
Type

Color of the cover cap
Blue
Yellow
Green
Gray
Orange
Red
Specifications



Handle diameter d1
Thread d2 (Type E)
Type

Color of the cover cap
Blue
Yellow
Green
Gray
Orange
Red

Selected Part (How to order)

Total (net)
1,52 €
plus VAT 0,29 €
gross 1,81 €
In stock
Weight: 0,013 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
39263000
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
