DIN 6336 Star Knobs Plastic, Threaded Bushing, Stainless Steel

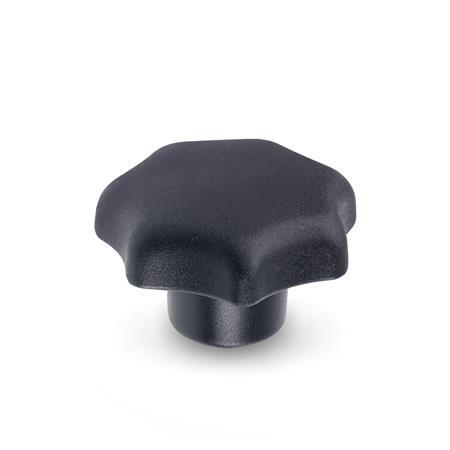

Star Knobs DIN 6336: Plastic, Threaded Bushing, Stainless Steel
Material: KT - Plastic
Stainless-Steel-Quality-Class-1

Product Family Stainless Steel Quality Class 1

The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.

For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:

Edelstahl Güteklasse 1 Stainless Steel Quality Class 1

Edelstahl Güteklasse 2 Stainless Steel Quality Class 2

Edelstahl Güteklasse 4 Stainless Steel Quality Class 4

Show detailed information on the stainless steel quality classes

Show all stainless steel products
Stainless-Steel-Quality-Class-2

Product Family Stainless Steel Quality Class 2

The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.

For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:

Edelstahl Güteklasse 1 Stainless Steel Quality Class 1

Edelstahl Güteklasse 2 Stainless Steel Quality Class 2

Edelstahl Güteklasse 4 Stainless Steel Quality Class 4

Show detailed information on the stainless steel quality classes

Show all stainless steel products
Stainless Steel Characteristics Plastic Characteristics Loss protections GN 111.7

Product description

Star knobs DIN 6336 with bore H7 are available as GN 6336.1 and GN 6336.2.

Specification

PlasticKU, Phenolic resin (PF)

  • Black, shiny finish
  • Threaded bushing
    Stainless steel AISI 304NI

PlasticKT, Polyamide (PA)

  • Shock-resistant
  • Black, matte finish
  • Threaded bushing
    Stainless steel AISI 303NI

RoHS

DIN 6336 Star Knobs, Threaded Bushing, Stainless Steel sketch
Hide technical drawing
DIN 6336 Star Knobs, Threaded Bushing, Stainless Steel sketch

Article options / Table

Type

KWith threaded bushing
Show / Hide columns
d1d2d3h1h2t1 min.
Bushing (KT)
Bushing (KU)
25M 5121689,57,5
32M 51420109,57,5
32M 6142010129
40M 6182513129
40M 81825131412
50M 82232171412
50M 102232171815
63M 102640211815
63M 122640212218
80M 123550252218
80M 163550253024

Build & Price
Material


Handle diameter d1
Thread d2
Type

Material bushing

Specifications









Material


Handle diameter d1
Thread d2
Type

Material bushing

Selected Part (How to order)

Total (net)
1,31 €
plus VAT 0,25 €
gross 1,56 €
Weight: 0,007 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
39269097
Please note our order discounts.
With a total value (net) per order:
from 200,00 € -> 10 % discount
from 300,00 € -> 20 % discount
from 400,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
Create project list
Save as favourite
Recommend a product

Stock availability

  • 510 pcs. deliverable in 1-2 days
  • For orders of 511 pcs. or more, please contact us briefly regarding delivery time.

CAD data

Other data formats

Quick-Login

For getting CAD data please enter you Email address. But we would be pleased, if you are fully registered.

CAD Download Tutorial About CAD-Downloads

Do you find your product ?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM: +49 7723 6507 - 0

To the customised elements | To the contact persons

DIN 6336-KT-25-M5-K-NIDIN 6336-KU-25-M5-K-NIDIN 6336-KT-32-M5-K-NIDIN 6336-KU-32-M5-K-NIDIN 6336-KT-32-M6-K-NIDIN 6336-KU-32-M6-K-NIDIN 6336-KT-40-M6-K-NIDIN 6336-KU-40-M6-K-NIDIN 6336-KT-40-M8-K-NIDIN 6336-KU-40-M8-K-NIDIN 6336-KT-50-M8-K-NIDIN 6336-KU-50-M8-K-NIDIN 6336-KT-50-M10-K-NIDIN 6336-KU-50-M10-K-NIDIN 6336-KT-63-M10-K-NIDIN 6336-KU-63-M10-K-NIDIN 6336-KT-63-M12-K-NIDIN 6336-KU-63-M12-K-NIDIN 6336-KT-80-M12-K-NIDIN 6336-KU-80-M12-K-NIDIN 6336-KT-80-M16-K-NIDIN 6336-KU-80-M16-K-NI
