DIN 6336 Star Knobs Plastic, Threaded Bushing Steel

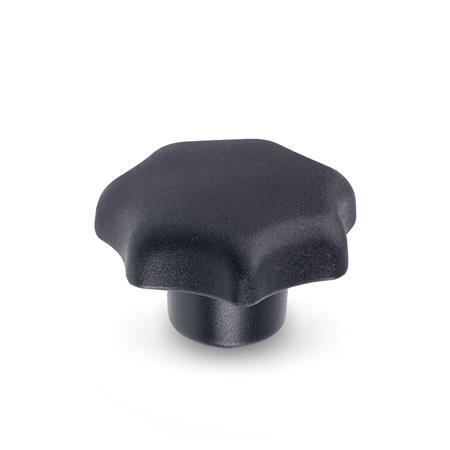

Star Knobs DIN 6336: Plastic, Threaded Bushing Steel
Material: KT - Plastic
Type: K - With threaded bushing
Plastic Characteristics Loss protections GN 111.7

Product description

Star knobs DIN 6336 with bore H7 are available under code GN 6336.1 and GN 6336.2.

Specification

PlasticKU, Phenolic resin (PF)

  • Black, shiny finish
  • Threaded bushing
    Steel
    Zinc plated, blue passivated

PlasticKT, Polyamide (PA)

  • Shock-resistant
  • Black, matte finish
  • Threaded bushing
    Steel
    Zinc plated, blue passivated

RoHS

DIN 6336 Star Knobs, Plastic, Threaded Bushing Steel sketch
Hide technical drawing
DIN 6336 Star Knobs, Plastic, Threaded Bushing Steel sketch

Article options / Table

Type

KWith threaded bushing
DWith threaded through bore
Show / Hide columns
d1d2
Plastic KU
Type K
Plastic KT
Type K
Plastic KT
Type D		d3h1h2t1
min.		t2
25-M 4-121687,5-
25M 5M 5-121689,5-
25-M 6-121689-
32-M 4-1420106,5-
32-M 5-1420109,5-
32M 6M 6M 61420101210,5
40M 6M 6-18251312-
40M 8M 8M 81825131413
40-M 10-18251314-
50M 8M 8M 82232171416
50M 10M 10M 102232171816
50-M 12-22321718-
63M 10M 10-26402118-
63M 12M 12M 122640212220
63-M 16-26402122-
80M 12M 12-35502522-
80M 16M 16-35502530-

Build & Price
Material


Handle diameter d1
Thread d2 (KU, Type K)
Thread d2 (KT, Type K)
Thread d2 (KT, Type D)
Type


Specifications









Material


Handle diameter d1
Thread d2 (KU, Type K)
Thread d2 (KT, Type K)
Thread d2 (KT, Type D)
Type


Selected Part (How to order)

Total (net)
0,74 €
plus VAT 0,14 €
gross 0,88 €
Weight: 0,005 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
39269097
Please note our order discounts.
With a total value (net) per order:
from 200,00 € -> 10 % discount
from 300,00 € -> 20 % discount
from 400,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
Create project list
Save as favourite
Recommend a product

Stock availability

  • 3583 pcs. deliverable in 1-2 days
  • For orders of 3584 pcs. or more, please contact us briefly regarding delivery time.

CAD data

Other data formats

Quick-Login

For getting CAD data please enter you Email address. But we would be pleased, if you are fully registered.

CAD Download Tutorial About CAD-Downloads

Do you find your product ?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM: +49 7723 6507 - 0

To the customised elements | To the contact persons

DIN 6336-KT-25-M4-KDIN 6336-KU-25-M5-KDIN 6336-KT-25-M5-KDIN 6336-KT-25-M6-KDIN 6336-KT-32-M4-KDIN 6336-KT-32-M5-KDIN 6336-KU-32-M6-KDIN 6336-KT-32-M6-KDIN 6336-KT-32-M6-DDIN 6336-KU-40-M6-KDIN 6336-KT-40-M6-KDIN 6336-KT-40-M8-KDIN 6336-KU-40-M8-KDIN 6336-KT-40-M8-DDIN 6336-KT-40-M10-KDIN 6336-KU-50-M8-KDIN 6336-KT-50-M8-KDIN 6336-KT-50-M8-DDIN 6336-KU-50-M10-KDIN 6336-KT-50-M10-KDIN 6336-KT-50-M10-DDIN 6336-KT-50-M12-KDIN 6336-KU-63-M10-KDIN 6336-KT-63-M10-KDIN 6336-KU-63-M12-KDIN 6336-KT-63-M12-KDIN 6336-KT-63-M12-DDIN 6336-KT-63-M16-KDIN 6336-KU-80-M12-KDIN 6336-KT-80-M12-KDIN 6336-KU-80-M16-KDIN 6336-KT-80-M16-K
