GN 212.5 Adjustable Tension Levers Stainless Steel, with External Thread

Adjustable Tension Levers GN 212.5: Stainless Steel, with External Thread
Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products

Product description

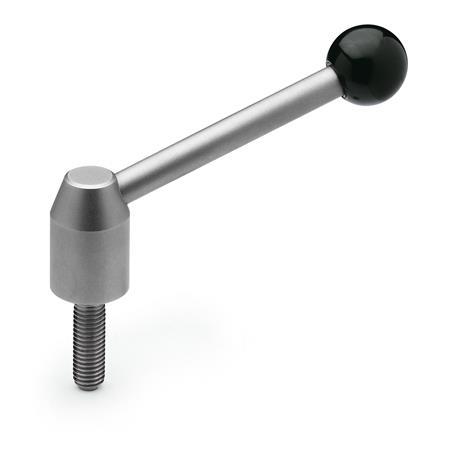

Adjustable tension levers GN 212.5 have proved to be ideal whenever parts have to be clamped in a confined space or a particular lever position is re-quired. The threaded insert is connected with the hub via serrations which can be disengaged.

Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever it will automatically re-engage.

Specification

Hub / Shaft
Stainless steel AISI 303
Matte shot-blasted


Insert
Stainless steel AISI 303


Ball knobs DIN 319
Plastic, phenolic resin (PF)
Black, shiny finish


Safety circlip
Plastic, Polyacetal (POM)


RoHS

On request

  • Lever straight (90°)
Hide technical drawing
GN 212.5 Adjustable Tension Levers, Stainless Steel, with External Thread sketch

Article options / Table

Type

EAngled lever
Show / Hide columns
d1d2l1d3d4d5h1h3h4h5
Stroke
l2l3
21M 81620253240506313,582033,515947570
24M 1020253240506380161025402,5754,510196
28M 12253240506380-19123048,54,5894,5116110

Build & Price

Diameter d1
Connection thread d2
Thread length l1
Type

Specifications

Diameter d1
Connection thread d2
Thread length l1
Type

Selected Part (How to order)

Total (net)
21,28
plus VAT 4,04 €
gross 25,32 €
In stock
incl. material surcharge: 0,51 €
The material surcharge is already included in the price.
Weight: 0,104 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
