GN 422 Cabinet U-Handles Zinc die casting, with Electrical Switching Function / with Indicator Light, with Two Function Elements

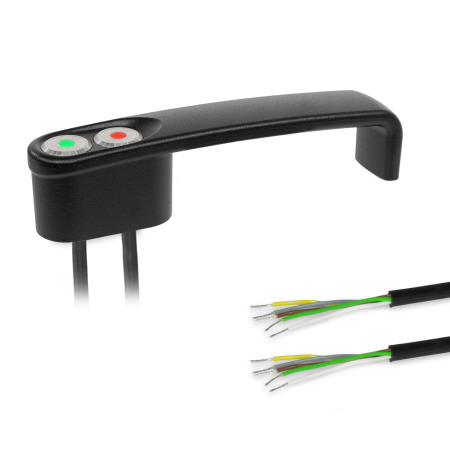

Cabinet U-Handles GN 422: Zinc die casting, with Electrical Switching Function / with Indicator Light, with Two Function Elements
Function element 1: LK - Indicator light LED, red / green (bi-color) (no switching function)
Function element 2: LK - Indicator light LED, red / green (bi-color) (no switching function)
Connection type: K2 - Cable, end open, 2 m
Finish: SW - Black, RAL 9005, textured finish
with-IF-Award-Icon
Operating instruction GN 422 Load Rating Information Plastic Characteristics

Product description

Cabinet U-handles GN 422 are used to operate covers and doors. The buttons integrated into the handle can send electrical control signals, and the LEDs can indicate the status of a machine control, for example.

The handle is available with either 1 or 2 function elements. The LEDs light up red or green depending on the polarity at the connections.

Complementary cabinet U-handles without switching function are available as GN 422.1.

Specification

Handle
Zinc die casting
Powder coated

  • Black, RAL 9005, textured finishSWSW
  • Silver, RAL 9006, textured finishSRSR

Button / Indicator light housing
Stainless steel AISI 304

Cable (Outer sheath)
Polyurethan (PUR)
Black

Light guide
Plastic
Crystal-clear Polycarbonate (PC)

RoHS

Accessory

GN 330 Cables with Connector Coupling (5-pole, 5 oder 10 meters long)

GN 422 Cabinet U-Handles, Zinc die casting, with Electrical Switching Function / with Indicator Light , with Two Function Elements sketch
Hide technical drawing
GN 422 Cabinet U-Handles, Zinc die casting, with Electrical Switching Function / with Indicator Light , with Two Function Elements sketch

Article options / Table

Function element 1

LKIndicator light LED, red / green (bi-color) (no switching function)
RKButton, latching, with LED, red / green (bi-color)
ROButton, latching, without LED
TKButton, with LED, red / green (bi-color)
TOButton, without LED

Function element 2

LKIndicator light LED, red / green (bi-color) (no switching function)
RKButton, latching, with LED, red / green (bi-color)
ROButton, latching, without LED
TKButton, with LED, red / green (bi-color)
TOButton, without LED

Connection type

K2Cable, end open, 2 m
K5Cable, end open, 5 m
S025Cable with plug, 0,25 m
Show / Hide columns
badhl1l2
Type T1		l3t
3310,2M 644117181,5105,512

Build & Price
Length b
Function element 1





Function element 2





Connection type



Finish
Silver
Black
Specifications

Length b
Function element 1





Function element 2





Connection type



Finish
Silver
Black

Electrical and Mechanical Properties

Button
Contacts
Contact material
Switching voltages

Switching current
mech. lifespan
elect. lifespan


Changeover contact, snap contact
silver alloy
max. 125 V (plug)
max. 240 V (cable)
max. 3 A
106 switching cycles
50,000 switching cycles (under full load)

 441a8539-47ac-430e-a1f9-11050bb03d8f

LED indicator light /
LED ring lighting
Operating voltage /
Operating current
bi-color (red / green)



24 V DC ± 10 % / 7 mA

 4dccef08-5944-43d1-9239-c954806a49a7

Category of use
(button)

AC 15: 24 V AC / 1 A / DC 13: 24 V DC / 0.7 A
AC 15: 110 V AC / 1 A / DC 13: 110 V DC / 0.2 A
AC 15: 220 V AC / 0.5 A / DC 13: 220 V DC / 0.1 A

acc. to IEC 60947-5-1

AC: 120 V AC / 5 A / DC: 12 V DC / 1 A
AC: 240 V AC / 3 A

acc. to UL 508

Connection type
Cable with open end
(K2 / K5)


PUR cable with open stranded wires (2 m or 5 m)

 fcd3569a-e472-4916-af30-ee6625fd9588

Approvals,
conformity declarations
CE declaration

 3e29142e-6524-4b60-afcc-da6bf1c22ab6

Installation Holes

The holes must be free of burrs to prevent damage to the cable.
3e3db03e-49f9-453d-8500-21a5c996b2c8

Security Information

The information in the operating instruction must be observed during installation, initial operation, and use. It is enclosed with the product and is provided digitally on the product page at ganternorm.com.

Selected Part (How to order)

Total (net)
128,81 €
plus VAT 24,47 €
gross 153,28 €
incl. material surcharge: 1,06 €
The material surcharge is already included in the price.
Weight: 0,790 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
85365007
Please note our order discounts.
With a total value (net) per order:
from 200,00 € -> 10 % discount
from 300,00 € -> 20 % discount
from 400,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
Create project list
Save as favourite
Recommend a product

Stock availability

  • 40 pcs. deliverable in 5-9 days
  • For orders of 41 pcs. or more, please contact us regarding delivery time.
