3.4 Installing, Lifting, Damping with Leveling Feet, Lifting Gear and Rubber Elements
Rubber Buffers
GN 351 Rubber Buffers

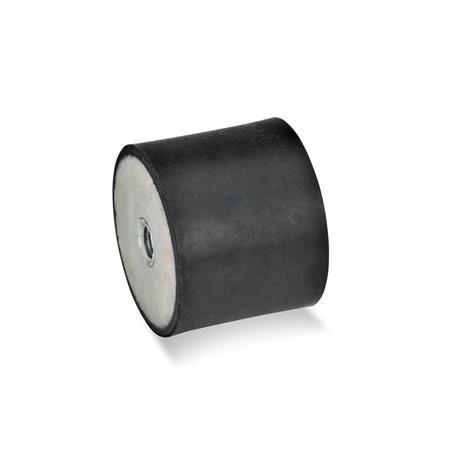

GN 351 Rubber Buffers Steel

Type: EE - With two internal threads

Standard sheet GN 351
Print this page

Overview of Types Vibration Damping Elements / Buffers / Rubber Buffers Technical Instructions Buffers / Rubber Buffers Resilent Characteristics GN 351 / GN 451 Plastic Characteristics

Product description

Rubber buffers GN 351 are suitable for the elastic mounting of machine units such as motors, compressors and pumps.

Specification

Rubber
Natural rubber (NR), black

Vulcanized to the cover plates
Operating temperature -40 °C to +80 °C
Hardness Shore A ±5
- Soft40
- Medium55
- Hard70

Cover plates / Threaded bushings / Threaded studs
Steel, zinc plated, blue passivated

RoHS

On request

Rubber in gray

GN 351 Rubber Buffers, Steel, with Internal Thread / Threaded Stud sketch

Hide technical drawing

Article options / Table

Type

EE	With two internal threads
ES	With internal thread / threaded stud
SS	With two threaded studs

Show / Hide columns

Werkstoff
Length l
s
t ≈

Show filter

d₁	h Type EE				Type ES							Type SS							d₂	Length l	s	t ≈

6	-	-	-	-	7	-	-	-	-	-	-	7	-	-	-	-	-	-	M 3	6	0,8	3
8	8	13	-	-	8	13	-	-	-	-	-	8	13	-	-	-	-	-	M 3	6	1	3
10	10	15	20	-	10	15	20	-	-	-	-	10	15	20	-	-	-	-	M 4	10	1,2	4
15	10	15	20	-	10	15	20	25	30	-	-	8	10	15	20	25	-	-	M 4	10	1,4	4
16	15	20	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	M 5	-	1,7	5
20	15	20	25	-	15	20	25	30	-	-	-	8,5	15	20	25	30	-	-	M 6	18	2	6
25	20	25	30	-	15	20	30	-	-	-	-	10	15	20	25	30	-	-	M 6	18	2	6
30	20	25	30	40	15	20	25	30	40	-	-	15	20	25	30	40	-	-	M 8	20	2	8
40	20	30	40	-	20	30	40	-	-	-	-	20	30	40	45	-	-	-	M 8	23	2	8
40	-	-	-	-	20	28	35	40	-	-	-	20	25	-	-	-	-	-	M 10	23	2	8
50	30	35	40	50	20	25	30	35	40	45	50	20	25	30	35	40	45	50	M 10	28	2	10
60	30	40	50	-	30	35	40	50	-	-	-	30	40	50	-	-	-	-	M 10	28	2	10
70	30	35	45	50	30	45	50	70	-	-	-	30	35	45	-	-	-	-	M 10	28	3	10
75	30	40	50	55	25	40	45	50	55	-	-	25	40	50	55	-	-	-	M 12	37	3	12
100	40	55	60	75	40	55	60	75	-	-	-	40	55	60	75	-	-	-	M 16	41	3	16
125	55	75	-	-	55	75	-	-	-	-	-	55	75	-	-	-	-	-	M 16	41	3	16

Filter combination produces no result.

Build & Price

Please accept marketing cookies and reload the page to use 3D configurator.

Outside diameter d₁

100

125

Height h (Type EE)

Height h (Type ES)

Height h (Type SS)

8,5

Thread d₂

M 3

M 4

M 5

M 6

M 8

M 10

M 12

M 16

Type

EE - With two internal threads

ES - With internal thread / threaded stud

SS - With two threaded studs

Hardness

40 - Soft

55 - Medium

70 - Hard

Specifications

GN 351 Rubber Buffers, Steel, with Internal Thread / Threaded Stud

GN 351 Rubber Buffers with Through-Hole

GN 351 Rubber Buffers, Steel, with Through-Hole and Cover Plate on One Side

GN 351 Rubber Buffers, Steel, with Through-Hole and Cover Plate on Both Sides

Outside diameter d₁

100

125

Height h (Type EE)

Height h (Type ES)

Height h (Type SS)

8,5

Thread d₂

M 3

M 4

M 5

M 6

M 8

M 10

M 12

M 16

Type

EE - With two internal threads

ES - With internal thread / threaded stud

SS - With two threaded studs

Hardness

40 - Soft

55 - Medium

70 - Hard

Technical Instructions

Buffers and rubber buffers are best at absorbing compressive forces. Tensile, shearing, flexural and torsional loads can be absorbed to a limited extent but negatively impact the service life. The information on load capacity in the standard sheet or technical section contains non-binding guide values. Exceeding these values can also lead to reduced service life or immediate failure of the part.

The examples show how a design can be modified to turn unfavorable load situations into favorable arrangements with compressive load.

The service life of elastomer elements can be decreased by environmental conditions, such as UV radiation, weathering, hydrocarbons and chemicals, as well as by aging. Positioning with appropriate protection will extend the service life.

Construction Examples


Unfavorable						Favorable

Selected Part (How to order)

Part number

Total (net)

0,62 €

plus VAT 0,12 €
gross 0,74 €

In stock

Weight: 0,001 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

40169991
