GN 6335.5 Hand Knobs Plastic, Threaded Stud, Stainless Steel

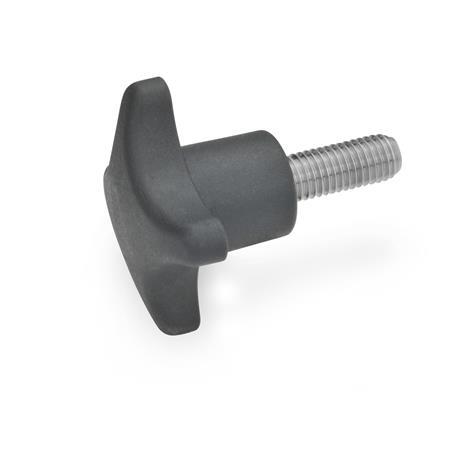

Hand Knobs GN 6335.5: Plastic, Threaded Stud, Stainless Steel
Material: ST - Plastic, Polyamide (PA)
Stainless-Steel-Quality-Class-1

Product Family Stainless Steel Quality Class 1

The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.

For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:

Edelstahl Güteklasse 1 Stainless Steel Quality Class 1

Edelstahl Güteklasse 2 Stainless Steel Quality Class 2

Edelstahl Güteklasse 4 Stainless Steel Quality Class 4

Show detailed information on the stainless steel quality classes

Show all stainless steel products
Stainless-Steel-Quality-Class-2

Product Family Stainless Steel Quality Class 2

The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.

For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:

Edelstahl Güteklasse 1 Stainless Steel Quality Class 1

Edelstahl Güteklasse 2 Stainless Steel Quality Class 2

Edelstahl Güteklasse 4 Stainless Steel Quality Class 4

Show detailed information on the stainless steel quality classes

Show all stainless steel products
Plastic Characteristics Stainless Steel Characteristics Loss protections GN 111.7

Product description

Star knobs GN 6335.5 comply with DIN 6335 type L.

Specification

  • Knob
    Plastic, Polyamide (PA)ST
    Shock-resistant
    Black matte finish

Threaded stud stainless steel
M6... M10: AISI 304 Cu
M12: AISI 303

  • Knob
    Plastic, Phenolic resin (PF)SK
    Black shiny finish

Threaded stud stainless steel

RoHS

GN 6335.5 Hand knobs, Plastic, Threaded Stud, Stainless Steel sketch
Hide technical drawing
GN 6335.5 Hand knobs, Plastic, Threaded Stud, Stainless Steel sketch

Article options / Table
Show / Hide columns
d1d2:Length l ≈d3h1h2
32M 61016202530142010
40M 820253040-182513
50M 102025304555223220
63M 12304050--264025

Build & Price
Material


Handle diameter d1
Thread d2
Length l
Specifications




Material


Handle diameter d1
Thread d2
Length l

Selected Part (How to order)

Total (net)
1,20 €
plus VAT 0,23 €
gross 1,43 €
In stock
Weight: 0,011 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
73181535
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
