GN 10i Aluminum Profiles i-Modular System, with Open Slots on All Sides, Profile Type Light

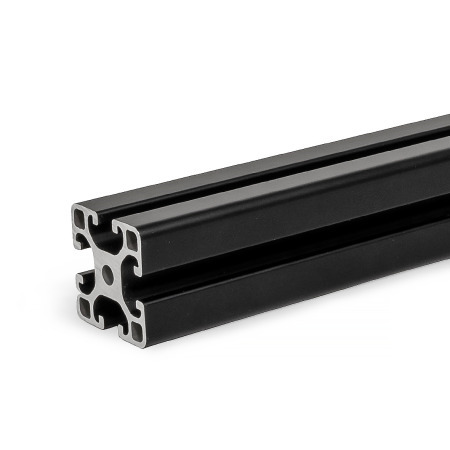

GN 10i Aluminum Profiles, i-Modular System, with Open Slots on All Sides, Profile Type Light Profile size: I-40408L
Finish: N - Anodized, natural color
Profile size: I-40408L
Finish: N - Anodized, natural color
GN 10i Aluminum Profiles, i-Modular System, with Open Slots on All Sides, Profile Type Light Profile size: I-40408L
Finish: N - Anodized, natural color GN 10i Aluminum Profiles, i-Modular System, with Open Slots on All Sides, Profile Type Light Profile size: I-30306L
Finish: N - Anodized, natural color GN 10i Aluminum Profiles, i-Modular System, with Open Slots on All Sides, Profile Type Light Profile size: I-30606L
Finish: N - Anodized, natural color GN 10i Aluminum Profiles, i-Modular System, with Open Slots on All Sides, Profile Type Light Profile size: I-40808L
Finish: N - Anodized, natural color GN 10i Aluminum Profiles, i-Modular System, with Open Slots on All Sides, Profile Type Light Profile size: I-60606L
Finish: N - Anodized, natural color GN 10i Aluminum Profiles, i-Modular System, with Open Slots on All Sides, Profile Type Light Profile size: I-80808L
Finish: N - Anodized, natural color

i-Modular System (Item compatible)

Product description

Information

Aluminum profiles GN 10i are produced by extrusion molding. They can be used, for example, to easily construct protective enclosures, workplace equipment or jigs.

Aluminum profiles in combination with the removable and reusable accessories form a flexible modular system. Attachments can be fastened to either the slots or the end faces via the holes.

The profile type light is typically used for small loads or for weight-optimized constructions.

Aluminum profiles are supplied in bundles. The table shows the quantity included in each bundle.

Specification

Aluminum
Anodized, natural colorN


RoHS

Accessory

T-Nuts GN 50i
Cover Caps GN 60i
Cover and Edging Profiles GN 70i
Cover Profiles GN 71i
Transport and Base Plates GN 80i

Technical drawing

3D
Hide technical drawing
GN 10i Aluminum Profiles, i-Modular System, with Open Slots on All Sides, Profile Type Light sketch

Article options / Table

Profile type

LLight
Show / Hide columns
s1s2nLength +1,5 mm
in meters
Bundle
Pieces
dks3tGrid size
303062345-39,7530
3060623253039,7530
404082346,8-4,512,2540
408082326,8404,512,2540
6060623153039,7530
808082316,8404,512,2540

Build & Price

Open 3D configurator
Specifications

Profile width s1
Profile height s2
Slot width n
Profile type

Finish
Length l
Bundle (Pieces)

Selected Part (How to order)

Total (net)
130,55
plus VAT 24,80 €
gross 155,35 €
In stock
incl. material surcharge: 10,12 €
The material surcharge is already included in the price.
Weight: 7,440 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 55, valid from 1 September 2022, plus VAT only valid for Germany.
