GN 586.2 Load Rings (Rotating) Steel, with Return Spring

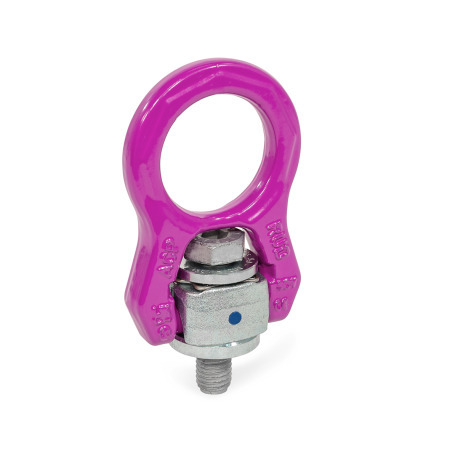

Load Rings (Rotating) GN 586.2: Steel, with Return Spring
Application Video GN 586.2 Operating instruction GN 586.2

Product description

Rotating load rings GN 586.2 are used with separate lifting gear and lashing equipment. They are screwed onto load-bearing equipment or directly onto the load and can absorb loads in any direction.

The integrated spring mechanism ensures that the load ring rotates in a load-friendly direction during lifting and lashing, preventing unfavorable lateral loads.

The nominal load capacity is indicated on the case. Rotating load rings GN 586.2 comply with the Machinery Directive 2006/42/EC and DGUV rules GS-HM-36.

The integrated RFID transponder clearly marks and identifies the lifting gear, e.g. during the prescribed regular inspection.

Specification

Load ring
Steel 1.6541

  • Forged, high-tensile tempered
  • 100% electromagnetically crack tested
    to EN 1677-1
  • Powder coated, pink

Bearing case
Steel

  • Forged, high-tensile tempered
  • 100% electromagnetically crack tested
    to EN 1677-1
  • Zinc plated

Screw
Steel

  • High-tensile tempered
  • Finish: Delta Tone

Spring
Steel

RFID transponder
Frequency 13.56 MHz (HF, IEC 15693)

RoHS

GN 586.2 Load Rings (Rotating), Steel, with Return Spring sketch
Hide technical drawing
GN 586.2 Load Rings (Rotating), Steel, with Return Spring sketch

Article options / Table
Show / Hide columns
d1d2d3h1h2h3h4k1k2Length lA/F1A/F2Tightening torque
in Nm		Nominal load capacity
in t (WLL)
(Safety factor 4:1)
M 8303894833311,710,56011,5513300,7
M 103038948334,411,710,56015,5617601
M 123038948335,511,710,56018,5819801,35
M 1640501211074613,7147822,2510241502,5
M 2045501351185616,6178426,512303004
M 2460661771547021,7231123414365006,3
M 30757521218387,5292713341,517468008
