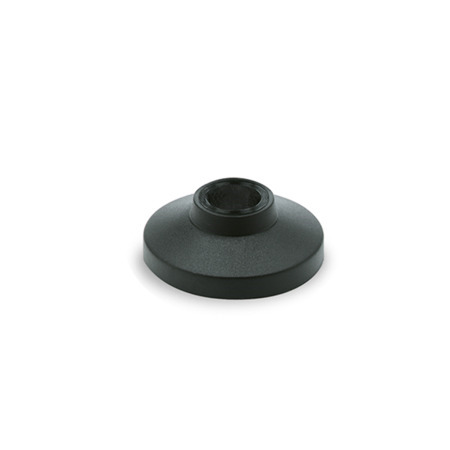

GN 3441 Base Plates Plastic

Base plates GN 3441 are made of plastic, making them lightweight, resistant to corrosion and electrically insulating. They are used with threaded studs GN 3440 or ball joints GN 3440.1 for setting up and leveling machines, devices and equipment.

The geometry of the base plate distributes the load over a large area and, in combination with the high-quality plastic, results in a high static load capacity.

The threaded studs or ball joints can be installed using a soft-head mallet or a press. The mounting holes in the base plate are sealed with a thin layer of plastic when delivered, which can be easily pierced or drilled through.

The static load capacity values specified in the table are non-binding guidelines; exceeding these values may result in deformation or component failure.

Specification

Base plate

• Plastic, polyamide (PA), Black, Matte FinishKAS
  • Glass fiber reinforced
  • Operating temperature -30 °C to +100 °C
• Plastic, polyamide (PA), Blue, Matte FinishVDB
  for identification no. 1 / 2 / 3
  • Glass fiber reinforced
  • Operating temperature -30 °C to +100 °C
  • FDA-compliant material
  • Visually detectable
  • RAL 5005
• Plastic, polypropylene (PP), Black, Matte FinishKPS
  for identification no. 1 / 3
  Operating temperature 0 °C to +80 °C

Rubber pad for type AG

• Acrylonitrile butadiene rubber (NBR)
  for material KAS and VDB
• Ethylene propylene diene rubber (EPDM)
  for material KPS
• Hardness 70 Shore A
• Black

RoHS

Accessory

Threaded Studs GN 3440 (Steel / Stainless Steel)
Threaded Studs GN 3440 (Plastic)
Ball Joints GN 3440.1 (Plastic)
