Original design LS.A-STP / LS.A-AS-STP
Product description

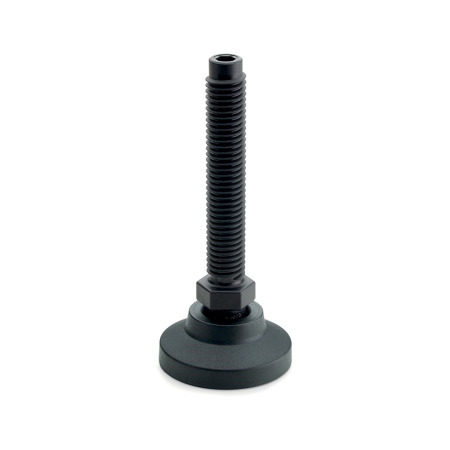

Leveling feet GN 343.9 are made of plastic, making them lightweight, resistant to corrosion and electrically insulating. They are used for setting up and leveling machines, devices and equipment.
The geometry of the base plate distributes the load over a large area and, in combination with the high-quality plastic, results in a high static load capacity. The leveling feet are supplied assembled, but they can also be taken apart.
The static load capacity values specified in the table are non-binding guidelines; exceeding these values may result in deformation or component failure.
Specification
Base plate
Plastic, polyamide (PA)
- Glass fiber reinforced
- Black, matt finish
Threaded stud
Plastic, polyamide (PA-HP)
- Glass fiber reinforced
- Black, matt finish
Rubber pad for type AG
Acrylonitrile butadiene rubber (NBR)
Hardness 70 Shore A, black
Operating temperature -30 °C to +100 °C
RoHS
