GN 586.2 Load Rings (Rotating) Steel, with Return Spring

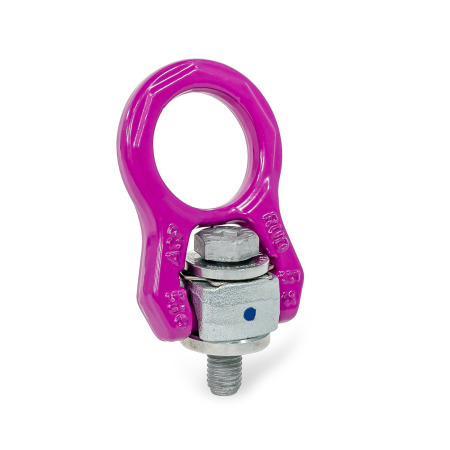

Load Rings (Rotating) GN 586.2: Steel, with Return Spring
Application Video GN 586.2 Operating instruction GN 586.2

Product description

Rotating load rings GN 586.2 are used with separate lifting gear and lashing equipment.

The integrated spring mechanism ensures that the load ring rotates in a load-friendly direction during lifting and lashing, preventing unfavorable lateral loads.

They are screwed onto load-bearing equipment or directly onto the load and can then absorb loads in any direction.

The nominal load capacity is indicated on the case. Rotating load rings GN 586.2 comply with the Machinery Directive 2006/42/EC and DGUV rules GS-HM-36.

The integrated RFID transponder clearly marks and identifies the lifting gear, e.g. during the prescribed regular inspection.

Specification

Load ring
Steel 1.6541

  • Forged, high-tensile tempered
  • 100% electromagnetically crack tested
    to EN 1677-1
  • Powder coated, pink

Bearing case
Steel

  • Forged, high-tensile tempered
  • 100% electromagnetically crack tested
    to EN 1677-1
  • Zinc plated

Screw
Steel

  • High-tensile tempered
  • Finish: Delta Tone

Spring
Steel

RFID transponder
Frequency 13.56 MHz (HF, IEC 15693)

RoHS

GN 586.2 Load Rings (Rotating), Steel, with Return Spring sketch
Hide technical drawing
GN 586.2 Load Rings (Rotating), Steel, with Return Spring sketch

Article options / Table
Show / Hide columns
d1d2d3h1h2h3h4k1k2Length lA/F1A/F2Tightening torque
in Nm		Nominal load capacity
in t (WLL, SF 4:1)
M 8303894833311,510,56011,5513300,7
M 103038948334,411,510,56015,5617601,0
M 123038948335,511,510,56018,5819801,35
M 1640501211074612,5147822,2510241502,5
M 2045501351185616178426,512303004,0
M 2460661771547020231123414365006,3
M 30757521218387,527,52713341,517468008,0

Build & Price
Thread d1
Thread d1

Load Capacity
060eb4f1-cd94-4e86-9561-30bc369cc1e3
Show / Hide columns
d1Lifting
F
max. in t		Lashing
Max. lashing capacity
in daN (LC, SF 2:1)
M 80,71400
M 1012000
M 121,352700
M 162,55000
M 2048000
M 246,312600
M 30816000

Rotating load rings are suitable for both lifting and lashing applications. Switching between the two types of use is permitted without restrictions as long as the permissible carrying capacity (WLL) is not exceeded during lashing. If rotating load rings are used exclusively as lashing points, they can be loaded beyond the permissible carrying capacity up to the maximum lashing capacity (LC).

The specified load values apply to an operating temperature range of –40 °C to +100 °C.

Mounting Information
Show / Hide columns
d1Max. tightening torque
in Nm
M 830
M 1060
M 1280
M 16150
M 20300
M 24500
M 30800

For one-off lifting operations, it is sufficient to screw in the rotating load rings by hand without tools. For more complex lifting and turning operations or if they will remain attached to the load for a prolonged period, the rotating load rings must be tightened with the specified tightening torque.

For cast iron, steel or stainless steel with a tensile strength of 340 N/mm2 or higher, the minimum screw-in depth is 1.5 times d1.

Safety Instructions

The information in the operating instruction must be observed during installation, initial operation, and use. It is enclosed with the product and is provided digitally on the product page at ganternorm.com.

Selected Part (How to order)

Total (net)
106,10 €
plus VAT 20,16 €
gross 126,26 €
Weight: 0,360 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
73269098
Please note our order discounts.
With a total value (net) per order:
from 200,00 € -> 10 % discount
from 300,00 € -> 20 % discount
from 400,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
Create project list
Save as favourite
Recommend a product

Stock availability

  • 3 pcs. deliverable in 1-2 days
  • For orders of 4 pcs. or more, please contact us regarding delivery time.
