GN 515 Latches with Extended Housing, with Operating Elements, Lockable

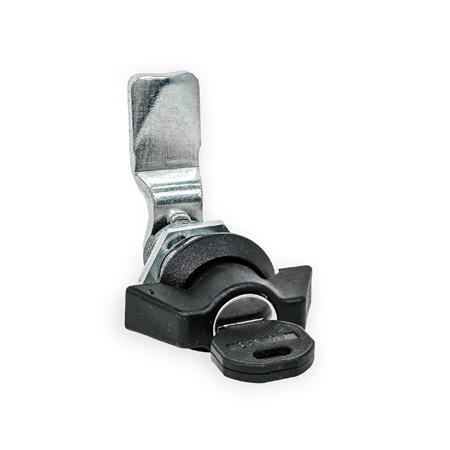

GN 515 Latches, with Extended Housing, with Operating Elements, Lockable Type: SCK - Operation with wing knob (same lock)
Type: SCK - Operation with wing knob (same lock)
GN 515 Latches, with Extended Housing, with Operating Elements, Lockable Type: SCK - Operation with wing knob (same lock) GN 515 Latches, with Extended Housing, with Operating Elements, Lockable Type: SCT - Operation with T-Handle (same lock)

Product description

Information

Lockable latches GN 515 are identical to standard latches GN 115 except for the extended housing. They are operated with a rotation limited to 90°, which moves the latch arm into the locked position behind the frame. The bevels of the latch arm ease the closing of the door.

By installing latch arms with different bend profiles, the latch distance A can be varied from 16 to 92 mm depending on the housing height h1, while the extended housing is suitable for a door thickness s up to 50 mm.

The latches each come with 2 keys and loosely enclosed latch arm. The key can be removed in both end positions. The lock is standard, so that every lock can be opened with the same key.

Specification

Lock housing
Zinc die castingZD
Housing collar
Powder coated
Black, RAL 9005, textured finishSWSW
Operating elements
Plastic (Polyamide PA)
Black, matte finish
Key
Nickel silver with plastic hand piece
Other parts
Steel, zinc plated, blue passivated
Protection class IP65

RoHS

Accessory

Protective Guide Plates GN 120.2

Technical drawing

3D
Hide technical drawing
GN 515 Latches, with Extended Housing, with Operating Elements, Lockable sketch

Article options / Table

Type

SCKOperation with wing knob (same lock)
SCTOperation with T-Handle (same lock)
Show / Hide columns
h1Latch arm distance Ah2s max.
3016202528323640444852574020
3018222630343842465054624020
4026303538424650545862675030
4028323640444852566064725030
5036404548525660646872776040
5038424650545862667074826040
6046505558626670747882877050
6048525660646872768084927050

Build & Price

Open 3D configurator
Specifications


Material

Type


h1
Latch arm distance A
Finish
SW

Construction and Assembly Instructions

MD515_MT-38929-0

For installation, set a hole in the door, cover or hatch as shown in the outline drawing.

The required installation hole in the door leaf, is usually generated by punching or laser machining in series production.

The installation hole diameter can also be created by drilling or milling as shown in the outline drawings.

When mounting the latches, care should be taken to ensure that the internal parts of the latch do not fall out of the housing when removing or mounting the hex head screw.

MD515_AN-38950-0

Selected Part (How to order)

Total (net)
18,49
plus VAT 3,51 €
gross 22,00 €
In stock
incl. material surcharge: 0,27 €
The material surcharge is already included in the price.
Weight: 0,136 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 50,00 €
All prices in accordance with our price list No. 55, valid from 1 September 2022, plus VAT only valid for Germany.

CAD data

Other data formats

Quick-Login

For getting CAD data please enter you Email address. But we would be pleased, if you are fully registered.

Please enter the code you can find in the picture.

CAD Download Tutorial About CAD-Downloads
Save as favourite

Please enter the code you can find in the picture.

Do you find your product ?

Our service team is available from Monday to Friday between 7:00 AM and 5:30 PM: +49 7723 6507 - 0

To the customised elements | To the contact persons
