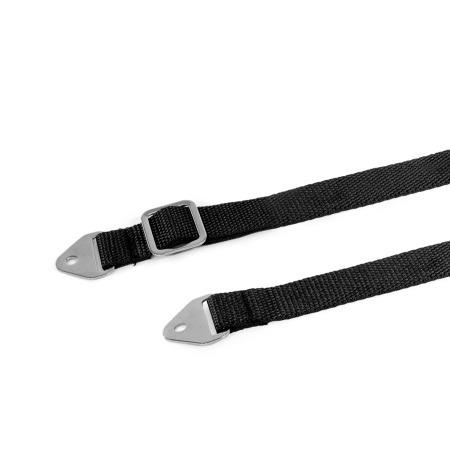

GN 1113Retaining StrapsFasteners Stainless Steel, Strap Plastic, Adjustable Length
Type: AA - 2 flat screw-on plates
Product Family Stainless Steel Quality Class 2
The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.
For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:
Retaining straps GN 1113 can be adjusted to any length by means of the bar buckle. When used as a holding strap, they limit the opening angle of doors and covers or serve as bracing or a carry strap.
Thanks to the fasteners permanently sewn onto the ends, the retaining straps can be securely screwed or riveted in place. Types AD and BD can be quickly and easily attached or detached thanks to the additional hook latch.
Retaining straps GN 1113 may not be used for lifting loads or for lashing.
Specification
Fasteners Stainless steel AISI 304NI
Strap
Plastic, polyester
Woven
BlackB
RoHS
Hide technical drawing
Article options / Table
Type
AA
2 flat screw-on plates
AD
Flat screw-on plate, suspension plate and screw-on hook
BB
2 45° screw-on plates
BD
45° screw-on plate, suspension plate and screw-on hook
If this article is new in our product range, it may happen that details concerning weight are as yet not listed. If you do need weight details, please contact our Sales Department! Phone+49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
63079098
