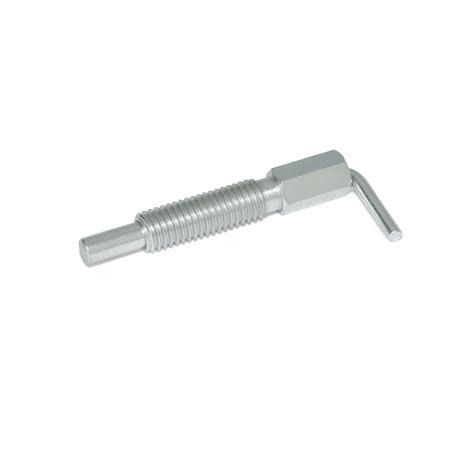

Indexing plungers GN 7017 are activated through a lever and are characterized by small dimensions. These indexing plungers are universally applicable due to their prevention of misalignments and positioning errors of the mating indexing bores.
The type C / CK with rest position are used for such applications where the plunger has to stay in its retracted position.
During assembly, the max. tightening torques shown in the table should not be exceeded when securing the lock nut.
Specification
Guide / Plunger pin / Lever SteelST
Zinc plated, blue passivated
Pressure spring
Stainless steel AISI 301
Hex nut ISO 4035
Steel
Zinc plated, blue passivated
