GN 927.7 Stainless Steel-Clamping levers with eccentrical cam Contact plates stainless steel


GN 927.7 Stainless Steel-Clamping levers with eccentrical cam with threaded stud Type: B - Stainless Steel contact plate without setting nut
Type: B - Stainless Steel contact plate without setting nut

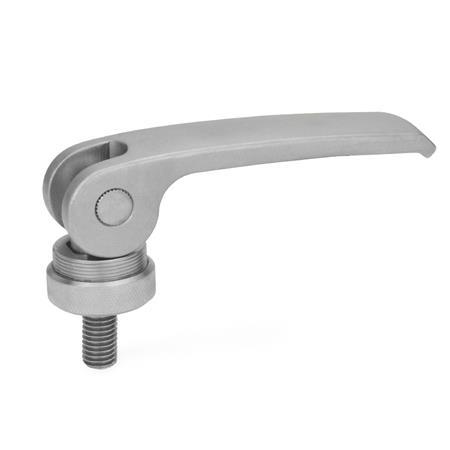

GN 927.7 Stainless Steel-Clamping levers with eccentrical cam with threaded stud Type: B - Stainless Steel contact plate without setting nut GN 927.7 Stainless Steel-Clamping levers with eccentrical cam with threaded stud Type: A - Stainless Steel contact plate with setting nut

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products

Product description

Information

Stainless Steel-Clamping levers with eccentrical cam GN 927.7 are used for rapid clamping and releasing. Hereby, contrary to a clamping operation via a thread, these levers permit A torque-free clamping.

The lever has been designed to ensure that its movement cannot exceed the max. clamping force.

There are no loose components since they are all assembled and mounted in their correct order.

With these clamping levers with eccentrical cam GN 927.7, clamping forces of up to 8 kN can be reached.

Type A has the following benefits:
The distance between the lever cam and the clamping surface is adjustable via a fine pitch thread, allowing the clamping position to be set easily with maximum clamping force. Also, the position of the lever relative to the clamping axis can be determined.

Specification

Lever
Stainless Steel AISI CF-8

Axis, lag screw
Setting nut and setting screw (type A)
Stainless Steel AISI 303

Contact plates
Stainless Steel
Super Duplex 255
hardened

RoHS

On request

Clamping surface free of grease

Technical drawing

Hide technical drawing
GN 927.7 Stainless Steel-Clamping levers with eccentrical cam with threaded stud sketch

Article options / Table

Type

AStainless Steel contact plate with setting nut
BStainless Steel contact plate without setting nut
Show / Hide columns
l1d2l2
in clamping position
bd3d4d5h
stroke at
90° lever
movement
l3
in
clamping
position
l4
Adjus-
table
range
l5
in
clamping
position
63M 51620253035405016161918,50,7516,32,53
63M 61620253035405016161918,50,7516,32,53
82M 62025303540506020202522,5119,533,7
82M 82025303540506020202522,5119,533,7
101M 820253035405060252630271,525,344,8
101M 1020253035405060252630271,525,344,8

Build & Price

Specifications

Lever length l1
Thread d2
Thread length l2
Type


Selected Part (How to order)

Weight: 0,069 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone+49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Please note our quantity discounts.
With a total value (net) per order:
from 175,00 Euro -> 10 % discount
from 275,00 Euro -> 20 % discount
from 375,00 Euro -> 30 % discount
With a total value (net) per order:
All prices in accordance with our price list No. 52, valid from 1 May 2019, plus VAT only valid for Germany.
