Adjustable Hand Levers GN 604.1 (ERZ.SST-p)

Adjustable Hand Levers GN 604.1: Plastic, Insert Stainless Steel, with External Thread

Original design
code: ERZ.SST-p

Color: SG - Black-gray, RAL 7021, matte finish

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Product Family Ergostyle

Ergostyle standard parts combine functional and ergonomic operation with attractive appearance. Numerous design awards are proof of the high quality claim. The hallmark of Ergostyle products are five small dots.

functional, ergonomic design
ultimate design quality (numerous design awards)

Show all Ergostyle products

Standard sheet GN 604.1 Print this page Plastic Characteristics Stainless Steel Characteristics

Product description

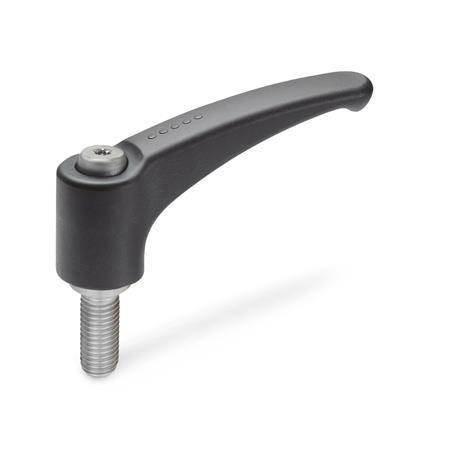

Adjustable hand levers GN 604.1 like all the products of the Ergostyle® family are renowned for their good style but also their ergonomical shape.

Pulling the lever disengages the serration and allows it to be turned in either direction to reach the ideal new location. On releasing the handle the serrations re-engage automatically.

Specification

Handle
Plastic, Polyamide (PA)

Glass fiber reinforced
Operating temperature -30 °C to +130 °C
Black-gray, RAL 7021, matte finishSG
Orange, RAL 2004, matte finishOR

Annual gear ring
Zinc die casting

Insert / Retaining screw
Stainless steel AISI 303

RoHS

l₁	d₁	l₂	d₂	d₃	h₁	h₂	h₃	h₄ Stroke

44	M 4	-	-	12	16	20	25	32	-	-	10	15,5	24,5	3,5	30,5	3,5
44	M 5	M 6	-	12	16	20	25	32	40	50	10	15,5	24,5	3,5	30,5	3,5
63	M 6	M 8	-	16	20	25	32	40	50	63	13,5	19	31	3,5	38,5	4
78	M 8	M 10	M 12	20	25	32	40	50	63	80	16	23	36	3,5	46,5	4
95	M 10	M 12	-	20	25	32	40	50	63	80	19	26,5	43	5	56,5	4
