GN 324 Spoked Handwheels Black, Powder Coated

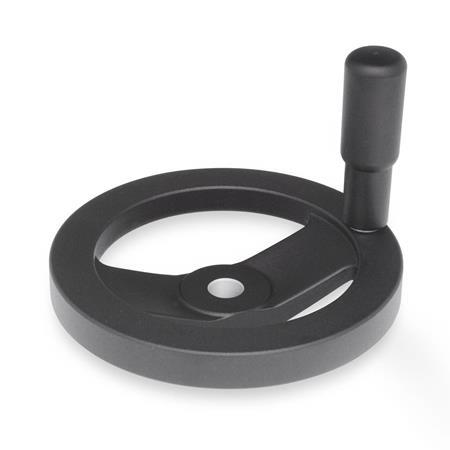

GN 324 Spoked Handwheels, Black, Powder Coated Bore code: B - Without keyway
Type: R - With revolving handle
Bore code: B - Without keyway
Type: R - With revolving handle
GN 324 Spoked Handwheels, Black, Powder Coated Bore code: B - Without keyway
Type: R - With revolving handle GN 324 Spoked Handwheels, Black, Powder Coated Bore code: B - Without keyway
Type: A - Without handle GN 324 Spoked Handwheels, Black, Powder Coated Bore code: K - With keyway
Type: A - Without handle GN 324 Spoked Handwheels, Black, Powder Coated Bore code: K - With keyway
Type: R - With revolving handle

Product description

Specification

Aluminum

  • Hub machined
  • Rim turned on all sides

Radial and axial runout of the rim < 0.4


Wheel body completely powder coated
Black, textured finish


Revolving handles GN 798

  • Plastic, Technopolymer
    Black, matte finish
  • Spindle steel
    Zinc plated, blue passivated

RoHS

Technical drawing

3D
Hide technical drawing
GN 324 Spoked Handwheels, Black, Powder Coated sketch

Article options / Table

Bore code

BWithout keyway
KWith keyway

Type

AWithout handle
RWith revolving handle
Show / Hide columns
d1d2 H7
Bore
d3bl1l2l3rØ
Handle
GN 798
12512143115183361,55422
14014163616,5193676,56124
16014163618203976,57124
20018204220,5244586,58925
25022264823285186,511325

Build & Price

Open 3D configurator
Handwheel diameter d1
Bore code


Bore diameter d2
Type


GN 110 Cross holes (special order)

GN 110 Zeichnung
Show / Hide columns
d1 H7
H11
d1 H7
H11
d2 H11d3Length l
Standard version
Length l
Handwheels DIN 950 / GN 949
to Ø 250
672,5M 34,5-
893M 55,54,5
10113M 55,54,5
12134M 66,55,5
14154M 66,55,5
16175M 687
18195M 687
20215M 687
22236M 6109
24256M 6109
26276M 6109

The connection between the operating element and the shaft consists very often of a cross pin or a grub screw.
As a result the user is faced with relatively high costs since cross holes on operating elements are in general not readily available.
Components with cross holes to GN 110 are not only offered at very competitive prices but they also save the manufacturer unnecessary drawing work. The geometrical form of some of the operating elements, however, does not lend itself to modification to this particular standard.
The pin hole d2 H11 is drilled to suit drive spring pins.

The cross hole GN 110 is to be ordered as a separate item in shopping cart step 1 under note.
How to order: Handwheel DIN 950-GG-160-B14-A with cross hole GN 110-QE

Cross holes GN 110

Selected Part (How to order)

Total (net)
25,29
plus VAT 4,81 €
gross 30,10 €
In stock
incl. material surcharge: 0,74 €
The material surcharge is already included in the price.
Weight: 0,390 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
84879090
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
