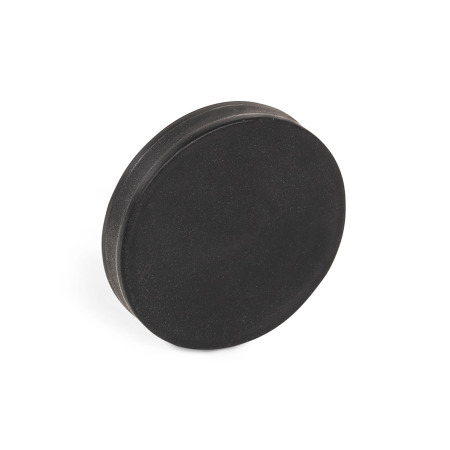

Retaining magnets GN 51.1 with rubber jacket are used to join parts together. The opposing magnetic surfaces make a fastening hole unnecessary. The side on which the magnet adheres more strongly depends on the material, the material thickness and the surface characteristics of the respective opposing part.
The retaining magnets form a system together with the steel part that strengthens the magnetic force, optimally concentrating the magnetic flux on the rubberized magnetic surfaces.
The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.
Specification
Magnet NdFeBND
Neodymium, iron, boron
Operating temperature up to 80 °C
If this article is new in our product range, it may happen that details concerning weight are as yet not listed. If you do need weight details, please contact our Sales Department! Phone+49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
85051110
