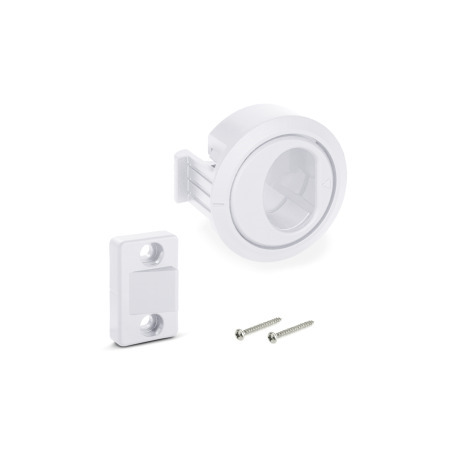

Snap latches GN 449.4 combine the function of a gripping tray with that of a snap latch to provide an easy way to keep doors and covers closed.

The mounting hole must be created according to the dimensions specified in the mounting information. For mounting, first insert the front body into the hole in the door, then push in the housing from the opposite side. Use the two supplied self-tapping screws to join the housing with the front body.

Finally, orient the snap element based on the reference marks and mount it on the frame or profile.

Specification

Front body
Plastic (Polyacetal POM)

  • Temperature resistant up to 60 °C
  • UV resistant

Housing / snap element
Plastic (Polyamide PA)

  • Glass fiber reinforced
  • Temperature resistant up to 60 °C
  • UV resistant

Color
Black, matte finishSWSW


Self-tapping screws ISO 7049-ST3.5x19
Stainless steel


RoHS

Technical drawing

3D
Hide technical drawing
GN 449.4 Snap Latches, Plastic, with Gripping Tray sketch

Article options / Table

Show / Hide columns
d1l1Wall thickness
Nominal size

s
a
Profile cross-section
bd2d3d4h1h2h3h4l2l3l4l5l6m1m2
5915A 11...10304457505,133253,52328534819,5306,3
5920A 11...10404457505,133253,52328534819,5306,3
