GN 437.4 Hinges Zinc die casting, with detent

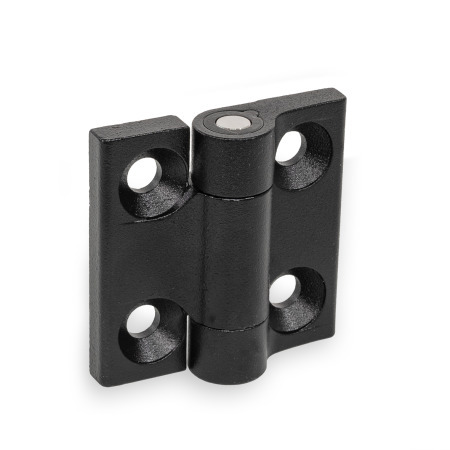

GN 437.4 Hinges, Zinc die casting, with detent Color: SW - black, RAL 9005, textured finish
Color: SW - black, RAL 9005, textured finish
GN 437.4 Hinges, Zinc die casting, with detent Color: SW - black, RAL 9005, textured finish GN 437.4 Hinges, Zinc die casting, with detent Color: SR - silver, RAL 9006, textured finish
Standard sheet GN 437.4 (601 KB) Print this page List of hinge types (1 MB) Kunststoff-Eigenschaften (182 KB)

Product description

Information

GN 437.4 Hinges with detent hold door and covers in the given indexing position without additional mechanics.

This is particularly advantageous when machines and systems must be frequently opened and closed for loading and unloading, and it is also useful for servicing or repairs. Undesirable independent closing and opening is prevented.

The -3° of the type C2 moreover ensures that the door or cover presses slightly against the housing frame when closed.

Specification

Zinc die castingZD
plastic coated
black, RAL 9005, textured finishSWSW
silver, RAL 9006, textured finishSRSR
Locking elements / Cover cap
Plastic (Polyacetal POM)
temperature resistant up to 80 °C
Pin
Stainless Steel AISI 303
Compression spring
Spring steel

RoHS

Accessory

Stainless Steel-Spacer plates GN 2370
Stainless Steel-Plates with tapped holes GN 2372

Technical drawing

GN 437.4 Hinges, Zinc die casting, with detent sketch
Hide technical drawing
GN 437.4 Hinges, Zinc die casting, with detent sketch

Article options / Table

Type

A2Indexing position, -90°, 0°, 90° and 180°, medium holding torque
C2Indexing position, -3° and 117°, medium holding torque
Show / Hide columns
l1l2dh1h2h3h4l3m1m2max. holding torque
MH ± 10% in Nm
60608,318,57,59,5192036361

Build & Price

Material

l1
l2
Type


Color
SR
SW

Selected Part (How to order)

Weight: 0,155 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone+49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Please note our quantity discounts.
With a total value (net) per order:
from 175,00 Euro -> 10 % discount
from 275,00 Euro -> 20 % discount
from 375,00 Euro -> 30 % discount
With a total value (net) per order:
All prices in accordance with our price list No. 52, valid from 1 May 2019, plus VAT only valid for Germany.

CAD data

At present, there is no direct download of 3D CAD data or 2D data for this article. Please send your inquiry by email directly to us. As soon as possible, we will send you the desired CAD-data.

Please add here your E-mail !


Save as favourite
Recommend a product

Please enter the code you can find in the picture.

Do you find your product ?

Our Service-Team is available from Monday to Friday from 7:00 until 17:30: +49 7723 6507 - 100

To the customised elements | To the contact persons

This could also be interesting...

Stainless Steel-Spacer plates for hinges
GN 2370 Stainless Steel-Spacer plates, for hinges GN 235, GN 237, GN 237.1, GN 337, GN 337.1, GN 437 and GN 7237
Stainless Steel-Plates with tapped holes for hinges
GN 2372 Stainless Steel-Plates with tapped holes, for hinges GN 235, GN 237, GN 237.1, GN 337, GN 337.1, GN 437 and GN 7237
Hinges with 4 indexing positions, Plastic
GN 222 Hinges, with 4 indexing positions, plastic
Hinges with indexing positions, Plastic
GN 122.1 Hinges, with 4 indexing positions, plastic
Hinges, Zinc die casting
NEW GN 437.1 Hinges, Zinc die casting
