GN 567 Star Screws Plastic, Threaded Stud Steel

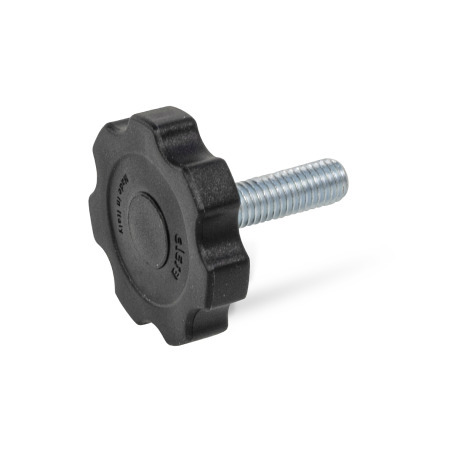

Star Screws GN 567: Plastic, Threaded Stud Steel
Original design
code: GFL

Product description

Star screws GN 567 can be used to lock and secure and require minimal space.

The ergonomic shape makes them easy to grip during use.

Specification

Knob
Plastic, Polyamide (PA)

  • Glass fiber reinforced
  • Operating temperature -30 °C to +100 °C
  • Black, matte finishSWSW

Threaded stud
Steel
Zinc plated, blue passivated


RoHS

Hide technical drawing
GN 567 Star Screws, Plastic, Threaded Stud Steel sketch

Article options / Table

Show / Hide columns
d1d2Length ld3d4hk
40M 620281225108,5
40M 820281225108,5
40M 1028381325108,5
50M 820281225108,5
50M 1028381325108,5

Build & Price

Handle diameter d1
Thread d2
Length l
Color
Black
Specifications

Handle diameter d1
Thread d2
Length l
Color
Black

Selected Part (How to order)

Total (net)
1,99
plus VAT 0,38 €
gross 2,37 €
ELESA Code: 168549
Description: GFL.40 p-M6x20
Weight: 0,021 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
39269097
Please note our order discounts.
With a total value (net) per order:
from 200,00 € -> 10 % discount
from 300,00 € -> 20 % discount
from 400,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
Save as favourite
Recommend a product

Stock availability

  • 7 pcs. deliverable in 1-2 days
  • For orders of 8 pcs. or more, please contact us regarding delivery time.

CAD data

CAD Download Tutorial

Do you find your product ?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM: +49 7723 6507 - 0

To the customised elements | To the contact persons

GN 567-40-M6-20-SWGN 567-40-M6-28-SWGN 567-40-M8-20-SWGN 567-40-M8-28-SWGN 567-40-M10-28-SWGN 567-40-M10-38-SWGN 567-50-M8-20-SWGN 567-50-M8-28-SWGN 567-50-M10-28-SWGN 567-50-M10-38-SW
