GN 604.2 Safety Hand Levers Plastic, Threaded Bushing Steel, Push to Engage

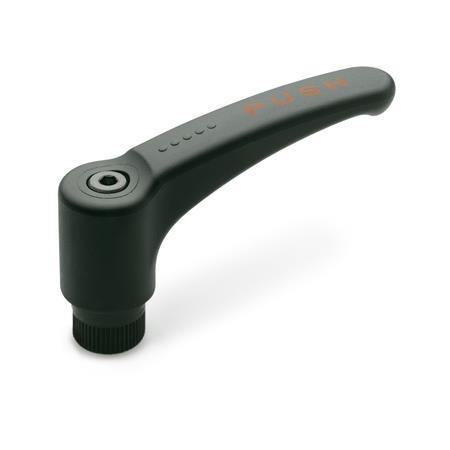

Safety Hand Levers GN 604.2: Plastic, Threaded Bushing Steel, Push to Engage
Original design
code: ERS.
Ergostyle

Product Family Ergostyle

Ergostyle standard parts combine functional and ergonomic operation with attractive appearance. Numerous design awards are proof of the high quality claim. The hallmark of Ergostyle products are five small dots.

  • functional, ergonomic design
  • ultimate design quality (numerous design awards)
Show all Ergostyle products
Plastic Characteristics

Product description

The design and handling of the adjustable hand lever GN 604.2 satisfy the high standards of the Ergostyle® product family.

Safety hand levers GN 604.2 are used where the inadvertent loosening or readjustment can result in accidents.

If not operated, the lever is not linked to the insert, i.e. the adjustable lever turns freely.

As soon as the lever hub is pushed down, both serrations will engage, allowing the fixture to be released or clamped.

After "releasing", the connection disengages through spring tension.

Specification

Handle
Plastic, Polyamide (PA)

  • Glass fiber reinforced
  • Operating temperature -30 °C to +130 °C
  • Black-gray, RAL 7021, matte finishSGSG

Insert
Plastic, Polyamide (PA)

  • Glass fiber reinforced
  • Black
  • Threaded bushing / Retaining screw
    Steel, blackened

RoHS

GN 604.2 Safety Hand Levers, Plastic, Threaded Bushing Steel, Push to Engage sketch
Hide technical drawing
GN 604.2 Safety Hand Levers, Plastic, Threaded Bushing Steel, Push to Engage sketch

Article options / Table
Show / Hide columns
l1d1d2d3h1h2h3h4
Stroke		t
min.
44M 4M 5M 61215,5299363,510
63M 6M 8-1519371248413

Build & Price
Handle length l1
Connection thread d1
Color
Black-gray
Specifications

Handle length l1
Connection thread d1
Color
Black-gray

Selected Part (How to order)

Total (net)
5,05 €
plus VAT 0,96 €
gross 6,01 €
In stock
ELESA Code: 236902
Description: ERS.44 A-M4
Weight: 0,014 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
84879090
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
Create project list
Save as favourite
Recommend a product

CAD data

Other data formats

Quick-Login

For getting CAD data please enter you Email address. But we would be pleased, if you are fully registered.

CAD Download Tutorial About CAD-Downloads

Do you find your product ?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM: +49 7723 6507 - 0

To the customised elements | To the contact persons

GN 604.2-44-M4-SGGN 604.2-44-M5-SGGN 604.2-44-M6-SGGN 604.2-63-M6-SGGN 604.2-63-M8-SG
