Functioning principle of indexing plungers
An indexing plunger creates a positive, detachable connection between one stationary and one moving component. It consists of a guide with an internal plunger pin or bolt. When the pull button is pulled, the plunger pin moves into the guide and makes the previously fixed component movable. After the component has reached its desired position, the user reinserts the pin into a hole or notch. This locks the part in place.
The shear strength of the plunger pin is decisive in determining the strength of the locking device. Depending on the type of the indexing plunger, the user can choose between various operating elements. Ganter supplies detent pins or indexing plungers made of steel or corrosion-resistant stainless steel, depending on the application.
Areas of application of indexing plungers | detent pins

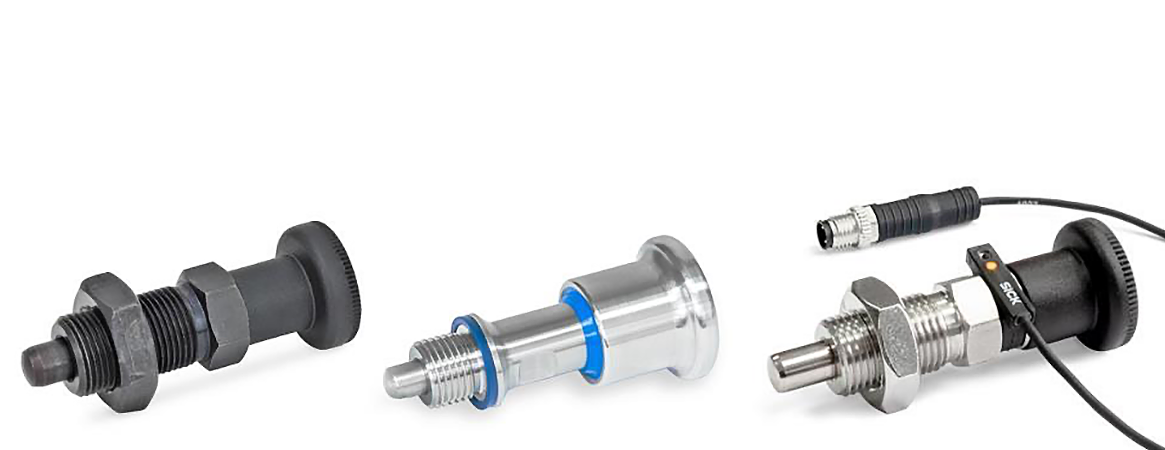

The indexing plungers manufactured in accordance with the Ganter Norm (GN) are available in a variety of designs. The optimal detent pin is thus available for every application:
- Rotation and swivel limits
- Height adjustments
- Detachable quick connections from separate components
- Hygienic design – use in special environments (food, pharmaceuticals)
- Pneumatically operated – for applications in which manual operation of a typical indexing plunger is not possible
Buy indexing plungers from Ganter online
You can get indexing plungers | detent pins from Ganter in various sizes, shapes and materials. These Ganter standard parts are distinguished by their high quality and long service life. The entire selection is available for delivery from stock, even as single parts. Designers can download a 3D file free of charge for each Ganter detent pin. On request, Ganter also produces indexing plungers according to customer requirements.
