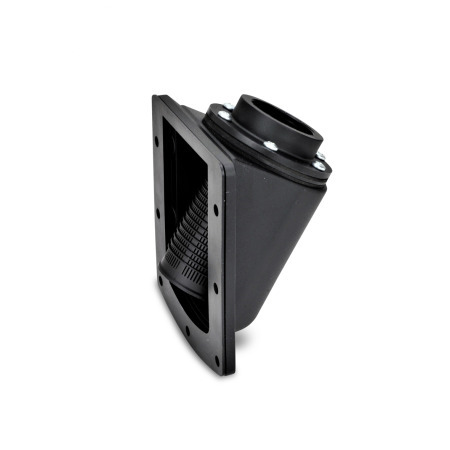

Filler strainers GN 664.1 are available with mounting flange for threaded or bayonet (BA) connection. Filler strainers prevent the ingress of coarse impurities during the refilling process.
The side flange is fitted with 7 screws M6 on the wall of the tank. When installing the flange it is important that these are not overtightened (torque max. 8 Nm) to prevent deformation of the flange and possible weakening of the sealing.
The mounting screws M6 for the side flange are not included.
Specification
Threaded flange
Plastic
Glass fiber reinforced
Black, matte finish
Filler strainer
Plastic (Polypropylen PP)
Glass fiber reinforced
Temperature resistant up to 90 °C
Black, matte finish
Flange for fitting bayonet
Steel, zinc plated, blue passivated
If this article is new in our product range, it may happen that details concerning weight are as yet not listed. If you do need weight details, please contact our Sales Department! Phone+49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
90268080
Please note our order discounts.
With a total value (net) per order: from 175,00 € -> 10 % discount from 275,00 € -> 20 % discount from 375,00 € -> 30 % discount
Surcharge for small volume purchases: -> 15,00 Euro for value of goods less than 25,00 € -> 10,00 Euro for value of goods from 25,00 to 49,99 €
ELESA original design
