GN 664 Filler Strainers for Vertical Installation

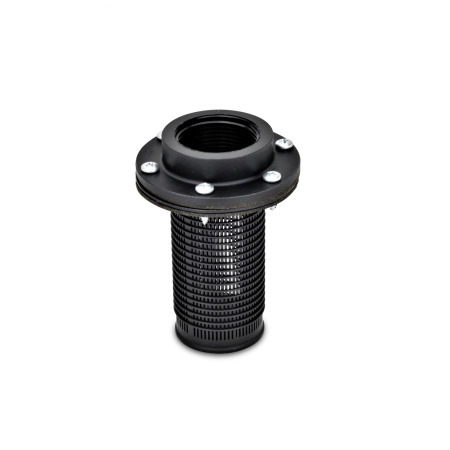

GN 664 Filler Strainer for Vertical Installation Thread d<sub>1</sub>: G 1 1/4
ELESA original design
code: FRB+C

Product description

Information

Filler strainers GN 664 are available with mounting flange for threaded or bayonet (BA) connection. Filler strainers prevent the ingress of coarse impurities during the refilling process.

Six self-tapping screws are included parts of the order.

Specification

Threaded flange
Plastic

  • Glass fiber reinforced
  • Black, matte finish

Filler strainer
Plastic
Technoplymer (Polypropylene PP)

  • Glass fiber reinforced
  • Temperature resistant up to 90 °C
  • Black, matte finish

Flange for fitting bayonet
Steel, zinc plated, blue passivated


Seal cork
Impregnated with rubber


RoHS

On request

Mounting flange without filler strainer

Technical drawing

3D
Hide technical drawing
GN 664 Filler Strainer for Vertical Installation sketch

Article options / Table

Show / Hide columns
d1
Thread
d2
Bayonet
BA
l1d3d4d5d6l2l3l4l5
G 1 1/4-948356-49239--
-BA 399483-5849--207
1) Breather caps are to be ordered separately.

Build & Price

Open 3D configurator
Bayonet d2
Thread d1
Strainer length l1

Mounting dimensions (hole pattern)

Skizze Montage GN 664

Selected Part (How to order)

Total (net)
14,10
plus VAT 2,68 €
gross 16,78 €
Delivery time 3-7 days
ELESA Code: 9101
Description: FRF+C FLANG. FIL.+CEST.FIR
Weight: 0,130 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 55, valid from 1 September 2022, plus VAT only valid for Germany.
