Identification no.: 1 - Without latch bracket
Finish housing collar: CR - Chrome plated
Product description

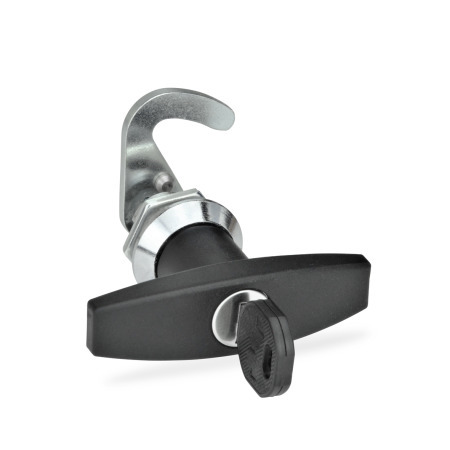

Hook-type latches GN 115.8 with hook and latch bracket are mainly used for sliding doors and flaps. The locking action is in radial direction to the axis of rotation, resulting in a wide variety of different uses.
The latches are delivered with 2 keys and loosely enclosed hook. The key can be removed in both end positions.
Types with a standard lock allow every lock to be opened with the same key. For the types with different lock, there are more than 200 different lock variants, whose keys are marked by numbers.
Specification
Lock housing
Zinc die casting
Housing collar
- Chrome platedCR
- Powder coated
Black, RAL 9005, textured finishSW
Other parts
Steel
Zinc plated, blue passivated
Key
Nickel silver with plastic handpiece
Wing knob / T-handle
Plastic, Polyamide (PA)
Black, matte finish
Protection class IP 65 for type SCK / SUK / SCT / SUT
RoHS
On request
- Hook-type latches with other hook distance A
- Hook with other pivoting radius R
