Latch Type Toggle Clamps GN 853

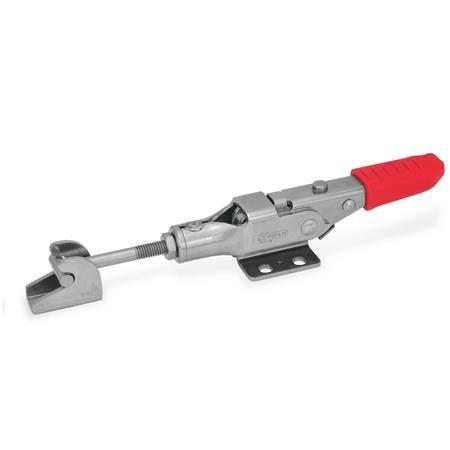

Type: TT - With tie-rod, with catch, with T-head latch bolt

Product Family Stainless Steel Quality Class 2

The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.

For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:

Stainless Steel Quality Class 1

Stainless Steel Quality Class 2

Stainless Steel Quality Class 4

Show detailed information on the stainless steel quality classes

Show all stainless steel products

Stainless Steel Characteristics

Product description

Latch type toggle clamps GN 853 also features a locking mechanism which prevents the inadvertent or vibration-induced opening of the clamp.

Another benefit is the option of operating the clamp with one hand.

Specification

Tensioning mechanism

Sheet metal parts / Latch bolt
Stainless steelNI AISI 304
Moving parts lubricated with special grease

Handle
Plastic
Red, oil resistant

RoHS
