Product Family Stainless Steel Quality Class 1
The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.
For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:
Stainless Steel Quality Class 1
Stainless Steel Quality Class 2
Stainless Steel Quality Class 4Show detailed information on the stainless steel quality classes
Show all stainless steel products
Product description

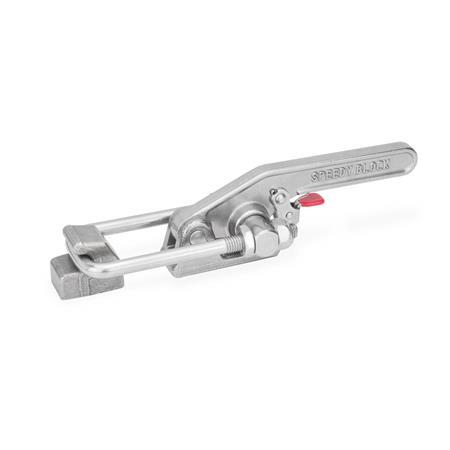

Stainless steel latch type toggle clamps GN 852.3 are compact in design and can be used to ensure high holding capacities.
When closing the spanner, a safety hook positively locks onto the body. This prevents the inadvertent or vibration-induced release from the clamping position. To open the safety hook it is unlocked per one-hand operation.
The stroke of the square U-bolt can be adjusted within its range.
In addition to the standard lengths of the square U-bolt shown above, more lengths may be achieved by using GN 951.2 series.
Specification
Body / Catch / Clamping lever/ Bearing pin
Stainless steelNI AISI 304,
forged
Other parts
Stainless steel AISI 303
Moving parts
lubricated with special grease
RoHS
