Material: NI - Stainless steel
Type: T2 - With mounting holes, with square U-bolt, with catch
Type: T2 - With mounting holes, with square U-bolt, with catch
Product Family Stainless Steel Quality Class 1
The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.
For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:
Stainless Steel Quality Class 1
Stainless Steel Quality Class 2
Stainless Steel Quality Class 4Show detailed information on the stainless steel quality classes
Show all stainless steel products
Product description

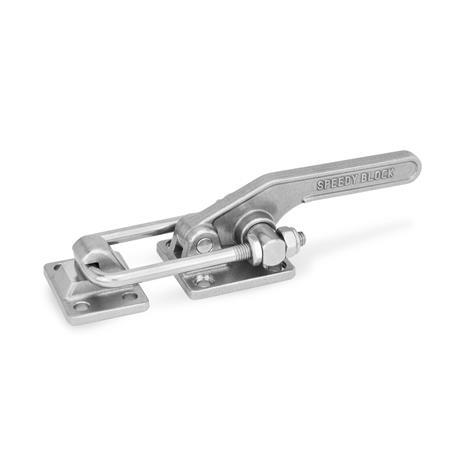

Latch type toggle clamps GN 852 are used for very high holding forces as may be required in plastic high pressure mold forming.
The stroke of the square U-bolt can be adjusted within its range.
In addition to the standard lengths of the square U-bolts shown in the table, a variety of other lengths are also available under the GN 951.2 series.
Specification
Stainless steelNI
- Body / Catch /
Clamping lever / Square U-bolt
Stainless steel AISI 304, forged - Other parts
Stainless steel AISI 303 - Moving parts lubricated with special grease
RoHS
