GN 850.1 Latch Type Toggle Clamps Stainless Steel, for Pulling Action

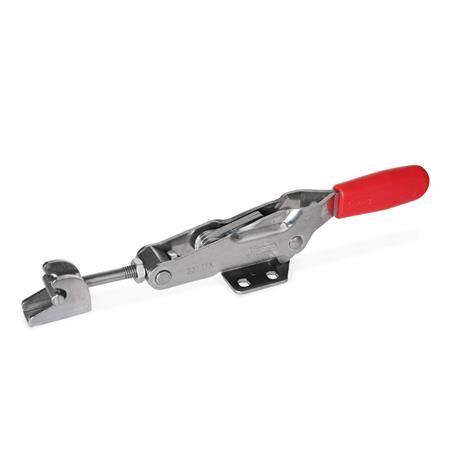

Latch Type Toggle Clamps GN 850.1: Stainless Steel, for Pulling Action
Type: TT - With draw axle, with catch, with T-head latch bolt
Material: NI - Stainless steel
Stainless-Steel-Quality-Class-2

Product Family Stainless Steel Quality Class 2

The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.

For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:

Edelstahl Güteklasse 1 Stainless Steel Quality Class 1

Edelstahl Güteklasse 2 Stainless Steel Quality Class 2

Edelstahl Güteklasse 4 Stainless Steel Quality Class 4

Show detailed information on the stainless steel quality classes

Show all stainless steel products
Operating Principle Toggle Lever / Overview of Types Stainless Steel Characteristics

Product description

Latch type toggle clamps GN 850.1 are especially suited for rapid closing and fastening of lids, flaps and molds.

During clamping, the pivoting movement of the clamping lever is transformed into an axial movement of the tension axis / tension hook and ensures form-fitting retention.

Latch type toggle clamps of type T are equipped with a tension axis firmly attached to the clamping arm. Type TF can be used for specific applications by attaching individual latch bolts. Latch bolts for latch type toggle clamps of Types TG, TT and TU can be adjusted along the adjustment dimension w2.

Specification

Tensioning mechanism

  • Sheet metal parts / Latch bolt
    Stainless steel AISI 304NI
  • Moving parts lubricated with special grease

Handle
Plastic
Red, oil resistant

RoHS

GN 850.1 Latch Type Toggle Clamps, Stainless Steel, for Pulling Action sketch
Hide technical drawing
GN 850.1 Latch Type Toggle Clamps, Stainless Steel, for Pulling Action sketch

Article options / Table

Type

TWith draw axle, with catch
TFWithout draw axle, without catch
TGWith draw axle, with catch, with oval head latch bolt
TTWith draw axle, with catch, with T-head latch bolt
TUWith draw axle, with catch, with J-hook latch bolt
Show / Hide columns
SizeFH
Holding
capacity
in N		ab1b2b3b4b5b6b7d1d2d3d4d5h1 ≈h2h3h4
50050001950493534183810M 86,56,77845173028
1000100002861635041265011M 108,58,5910562040,539
Show / Hide columns
Sizel1 ≈l2 ≈l3 ≈
Type TG		l4l5 ≈
Type TU		l6m1m2m3m4m5m6r  ≈stw1
Stroke		w2 ≈
Adjustable
range
5001973376,576,576,5341933,51922,3825,435316838
10002423495,593934232453125,48314541911012

Build & Price
Size
Type





Material

Specifications

Size
Type





Material

Selected Part (How to order)

Total (net)
53,39 €
plus VAT 10,14 €
gross 63,53 €
incl. material surcharge: 2,74 €
The material surcharge is already included in the price.
Weight: 0,465 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
82057000
Please note our order discounts.
With a total value (net) per order:
from 200,00 € -> 10 % discount
from 300,00 € -> 20 % discount
from 400,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
Create project list
Save as favourite
Recommend a product

Stock availability

  • 28 pcs. deliverable in 1-2 days
  • For orders of 29 pcs. or more, please contact us regarding delivery time.
