Type: T - With draw axle
Product Family Stainless Steel Quality Class 2
The Ganter product range includes a large number of standard parts made of high-quality, non-rusting stainless steels. Thanks to their outstanding material properties, these are used in a wide array of industries. Their corrosion and rust resistance in particular contributes to the value stability and longevity of machines and equipment.
For easier differentiation, the stainless steels used by Ganter are divided into stainless steel quality classes:
Stainless Steel Quality Class 1
Stainless Steel Quality Class 2
Stainless Steel Quality Class 4Show detailed information on the stainless steel quality classes
Show all stainless steel products
Product description

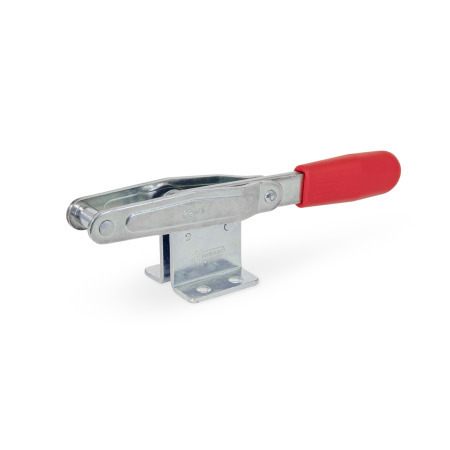

Latch type toggle clamps GN 850 are suited for rapid closing and fastening of lids, covers and molds.
During clamping, the pivoting motion of the clamping lever is transformed into an axial movement of the draw axle or draw hook and ensures a form-fit hold.
Latch type toggle clamps of type T are equipped with a draw axle firmly attached to the clamping arm. Type TF has a draw hook that can be adjusted within the adjustable range w2. The draw hook is supplied unmounted.
Specification
Tensioning mechanism
- SteelST
- Sheet metal parts
Case hardening steel C10, zinc plated, blue passivated - Bearing pins tempered
- Bearing rivets case hardened
- Sheet metal parts
- Stainless steel AISI 304NI
- Moving parts lubricated with special grease
Draw hook
- Steel St 37 for ST
Zinc plated, blue passivated - Stainless steel AISI 301 for NI
Handle
Plastic
Red, oil resistant
RoHS
On request
- without draw hook (Type TFN)
