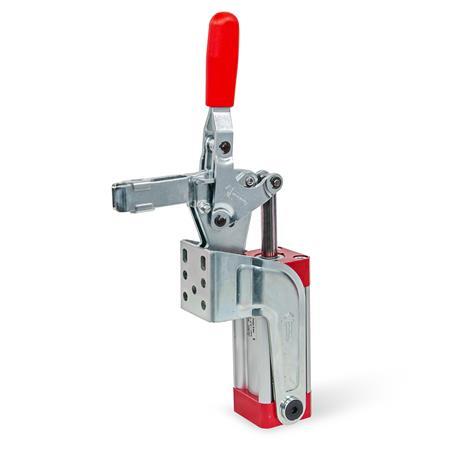

GN 862.1 Toggle clamps pneumatic, with additional manual operation


GN 862.1 Toggle clamps, pneumatic, with additional manual operation Type: EPV3S - Solid clamping bar with clasp for welding
Type: EPV3S - Solid clamping bar with clasp for welding
GN 862.1 Toggle clamps, pneumatic, with additional manual operation Type: EPV3S - Solid clamping bar with clasp for welding GN 862.1 Toggle clamps, pneumatic, with additional manual operation Type: APV3S - U-bar version, with two flanged washers GN 862.1 Toggle clamps, pneumatic, with additional manual operation Type: CPV3S - U-bar version, with two flanged washers and clamping screw GN 708.1

Product description

Information

GN 862.1 toggle clamps are built from the same construction as GN 862.

The special features of these clamps are that they can be mounted in two different planes, and they can also be operated manually via the grip handle. For example, they can individually be manually closed, and then all clamps can be opened at once via the pneumatic function.

To ensure an extended life of the mechanical parts as well as the air cylinders the operating pressure should not exceed 6 bar.

GN 862.1 toggle clamps are also available as a version M (magnetic piston). In conjunction with GN 896.2 proximity switches, the end position can be sensed and the generated impulse can be used to transmit an electrical signal.


Specification

Parts in sheet metal
Case-hardened Steel C10
zinc plated, blue ppassivated

Bearing pins hardened

Bearing rivets
case-hardened

Air cylinder bearing pins
case-hardened

Double-action air cylinder
Max. operating pressure 6 bar

All moving parts
lubricated with special grease

Solid moulded plastic handle sleeve
red, oil resistant
Clamping screw GN 708.1, type A
  • Steel, zinc plated
  • Rubber tip 85 Shore A

RoHS

Accessory

Clamping screws
Holders for clamping screws GN 801
(for type APV3S)
Holders for clamping screws GN 809
(for type EPV3S)

Technical drawing

3D
Hide technical drawing
GN 862.1 Toggle clamps, pneumatic, with additional manual operation sketch

Article options / Table

Type

APV3SU-bar version, with two flanged washers
CPV3SU-bar version, with two flanged washers and clamping screw GN 708.1
EPV3SSolid clamping bar with clasp for welding
Show / Hide columns
SizeFH in N
Holding
capacity
FS in N
Clamping
force at 4 bar ≈
ab1b2b3b4b5d1d2d3Inside Ø
Connection
tube
e
20016009703459,538,551358,5M 86,5G 1/8439,5
300240010504268,55360,55010,3M 108,5G 1/4650,5
Show / Hide columns
Sizeh1h2h3h4h5l1l2l3
max.
l4m1m2m3m4m5r ≈sw
Adjustable
range
200296781729541505980682614,516111698621
300360108203579,518774104773016,5281230122821

Build & Price

Open 3D configurator
Specifications

Size
Type



Selected Part (How to order)

Total (net)
178,78
plus VAT 28,60 €
gross 207,38 €
In stock
Weight: 1,209 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone+49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Please note our quantity discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount
With a total value (net) per order:
#artikelInfoToolTipZuschlagPosUnterWert#artikelInfoToolTipZuschlagPosVonBisWert
All prices in accordance with our price list No. 52, valid from 1 May 2019, plus VAT only valid for Germany.
